EN-9
The Camera Head
The camera head connects to the camera console and produces video and
photographic images, which it relays to the camera console. It features several
controls that are accessible through a button keypad located on the top of
the camera head (see the “Operation section).
See the “Product Description section for the dierent camera head models

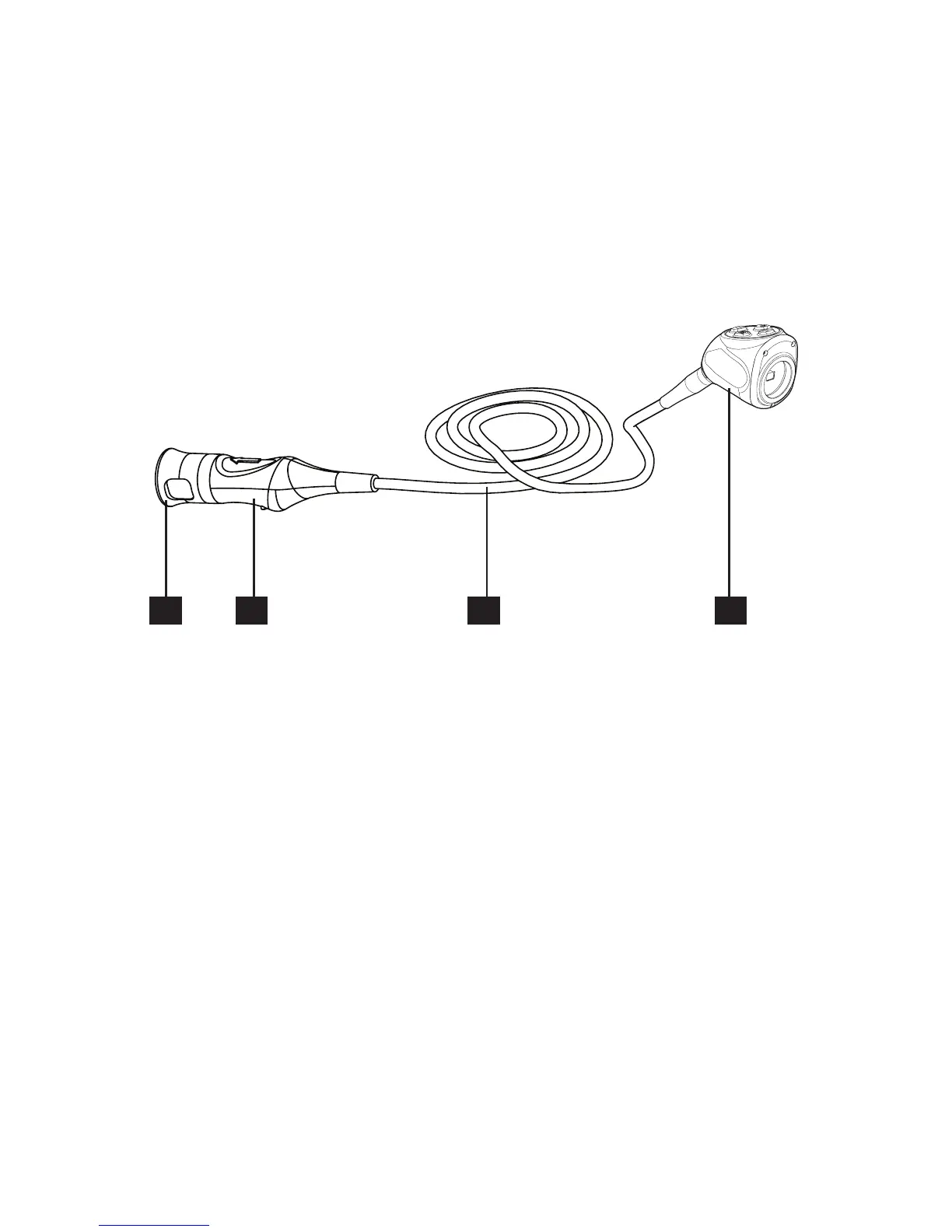

that are available. The 1488 HD 3-Chip Camera Head, C-Mount (1488210105)
is shown below.
1 42 3
1. Soaking Cap Protects the cable connector during cleaning,
disinfection, and sterilization
2. Cable Connector Connects the camera head to the camera console
3. Camera Cable The camera cable length is 10 feet (3.05 m)
4. Camera Head Produces photographic and video images,
provides camera controls, and connects with a
focusing coupler
