EN-7
The Camera Console
The camera console—or Camera Control Unit (CCU)—is the control center
for the 1488 HD Medical Video Camera, and it processes the video and
photographic images produced during the surgical procedure.
Front Panel
The console front panel features a touchscreen, where dierent menus can be
accessed, including the controls for adjusting the light level, zoom, and white
balance, as well as allowing the selection of surgical specialty settings that
optimize camera performance for specic surgical procedures. The front panel
also allows activation of remote outputs, which are commonly used with a
Stryker digital capture console to record images and video.
See the “Operation” section for more detail on using the front panel.
3

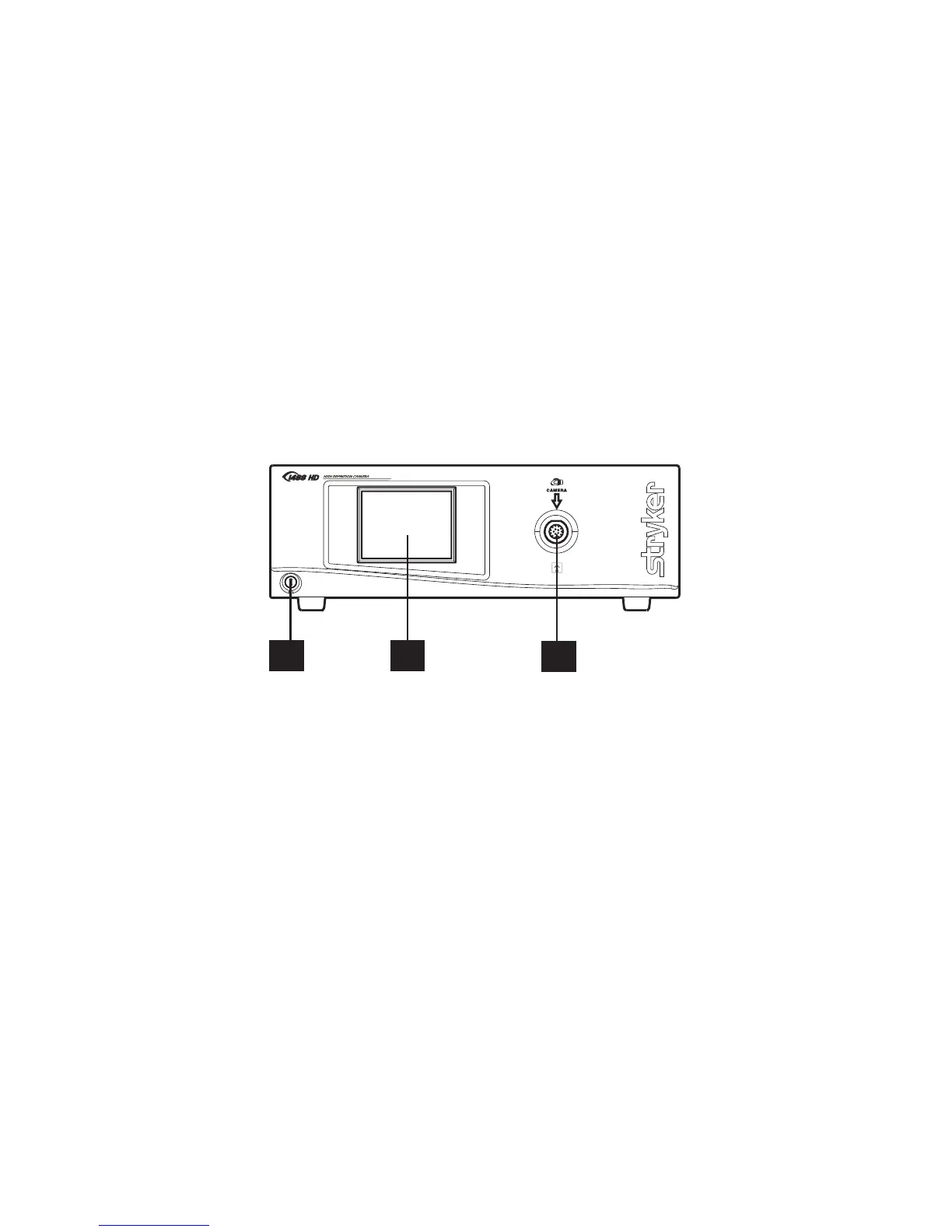

1 2
1. Power Switch Powers the camera ON and OFF
2. Touchscreen Allows navigation through dierent menus
for controlling the camera and adjusting
the video settings
3. Camera-Connector Port Connects to the 1488 HD Camera Head
To Next Page
