EN-19
Using the Camera Head Buttons

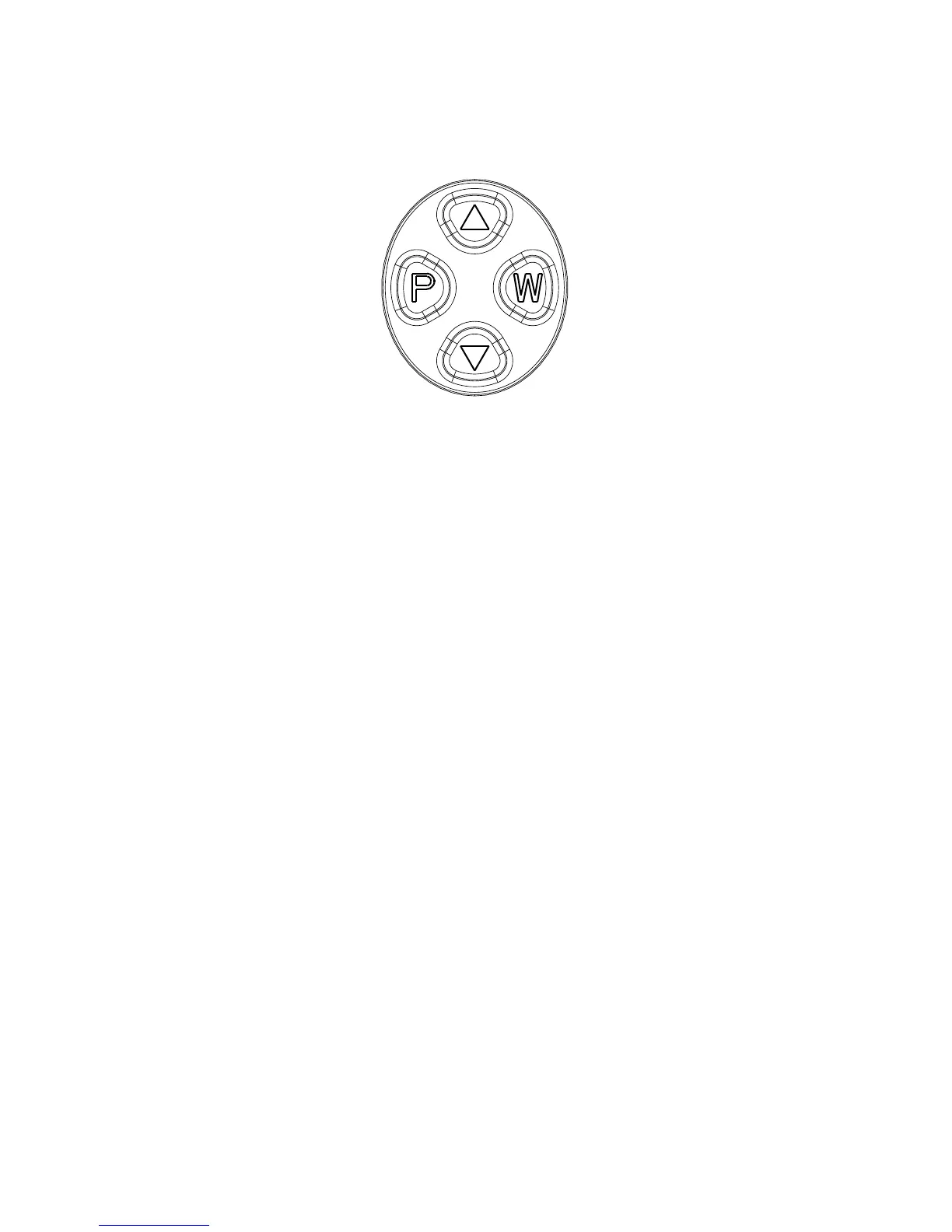

The camera head features a four-button keypad for controlling the 1488
camera. The button functions are described below.
Up and Down Buttons
The up and down buttons work together to increase or decrease the
automatic-shutter light level in eight steps.
P (Picture) Button
The P button controls up to two functions of a remote video accessory.
Commonly this enables the user to capture images or start and stop video
recording. (See Controlling Remote Video Accessories” above for connection
requirements.)
• Press the P button for less than two seconds to select Remote 1.
One beep will sound. When the camera is connected to a Stryker
digital capture console, this will capture a photo.
• Press the P button for more than two seconds to select Remote 2.
Two beeps will sound. When the camera is connected to a Stryker
digital capture console, this will start or stop video recording.
W (White-Balance) Button
The W button activates the white-balance function or the zoom-cycle
function.
• Press the W button for less than two seconds to activate the
zoom-cycle function. Each press will raise the zoom level in eight
steps. When the zoom level has reached its maximum, pressing the
button again will cycle the level back to the lowest setting.
• Press the W button for more than two seconds to activate the
white-balance function. White balancing will correct slight
color dierences that exist between dierent light sources or
endoscopes. See “Performing the White-Balance Test below.
