Service Information
WARNING
Always unplug the bed power cord when cleaning or servicing the bed.•
To prevent injury when working under the bed with the bed in the high position, always place blocks under the Hi-Lo •
levers and apply the brakes. Always unplug the bed power cord from the wall outlet when servicing or cleaning the
bed.
ACTUATOR LUBRICATION
Note
In compliance with the service life requirement of the BNQ 6641-120/2003 standard, this unit was designed maintenance
free with regard to lubrication. However, if the bed is used improperly or cleaned without following the recommendations
set forth in the Maintenance Manual (presence of cleaning detergent on the actuator screws), a lubrication of the
actuator could be necessary.
Tools Required:
No. 2 Phillips Screwdriver •
1/4” Ratchet (with 6” extension) and 5/16” Socket •
Bungee Cords •
OG2 Grease•
Brush •
C
B
Screw Covers Shown Are Optional

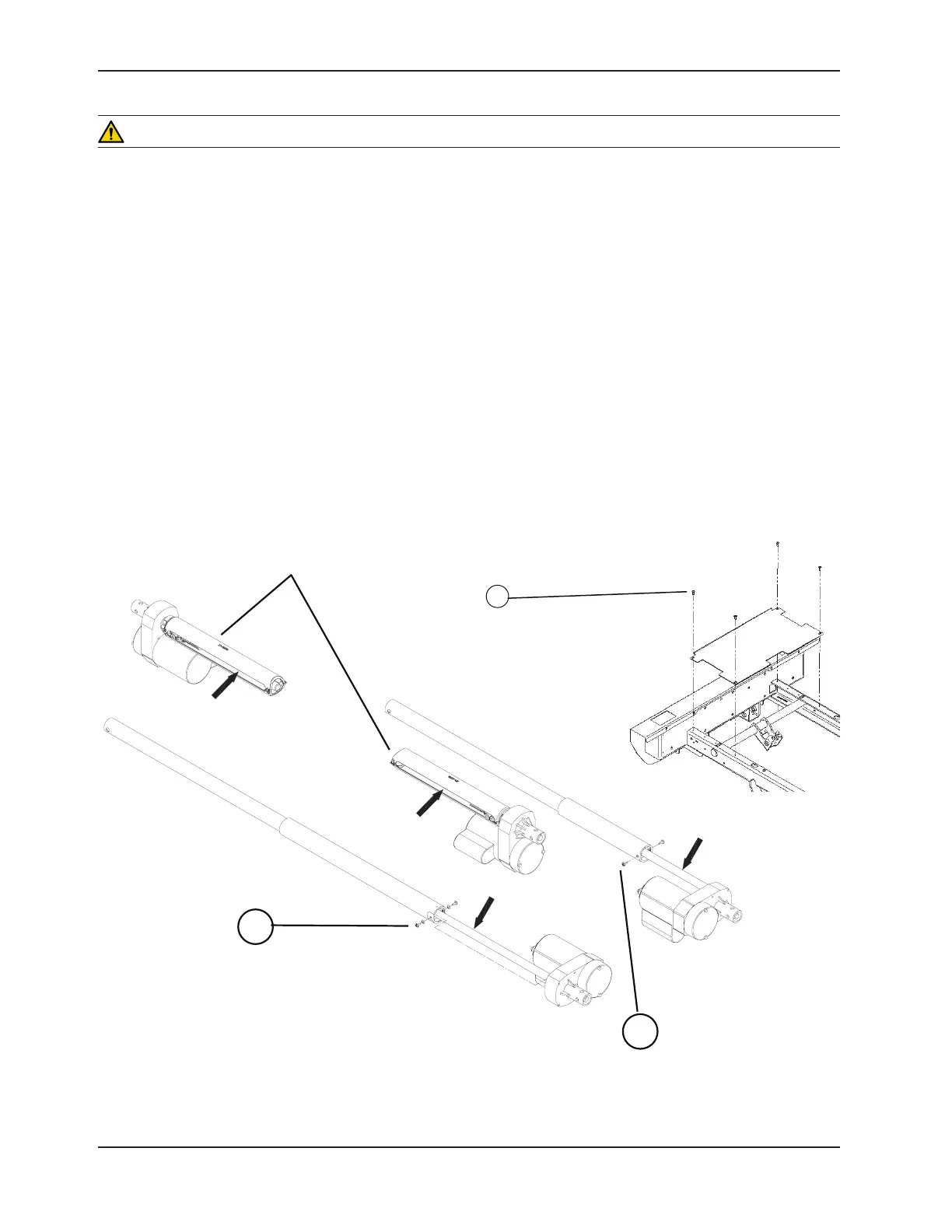

Figure 2.2
Screw Covers
Shown are Optional
