HEAD SECTION REPLACEMENT
Tools Required:
No. 2 Phillips Screwdriver •
Strap•
Two 1/2” Combination Wrenches•
Two 7/16” Combination Wrenches •
Procedure:
Note
Unless otherwise indicated, refer to Figure 4.3 A on pg. 37 for the following replacement procedure.
Completely raise the bed and apply the brakes. 1.
If the bed is equipped with full-length siderails, lower them. If equipped with half-length siderails, raise the head 2.
siderails and lower the foot ones.
Remove the head board. 3.
Completely raise the head section and attach it securely to the bed using a strap. 4. It must not move during the
procedure.
Unplug the bed power cord from the wall outlet. 5.
Using the No. 2 Phillips screwdriver, remove the two lateral mattress retainers (I) and keep them for the replacement 6.
head section.
If the bed is not equipped with the CPR emergency release (optional), proceed with steps 7 to 14. Otherwise, proceed
with steps 15 to 24.

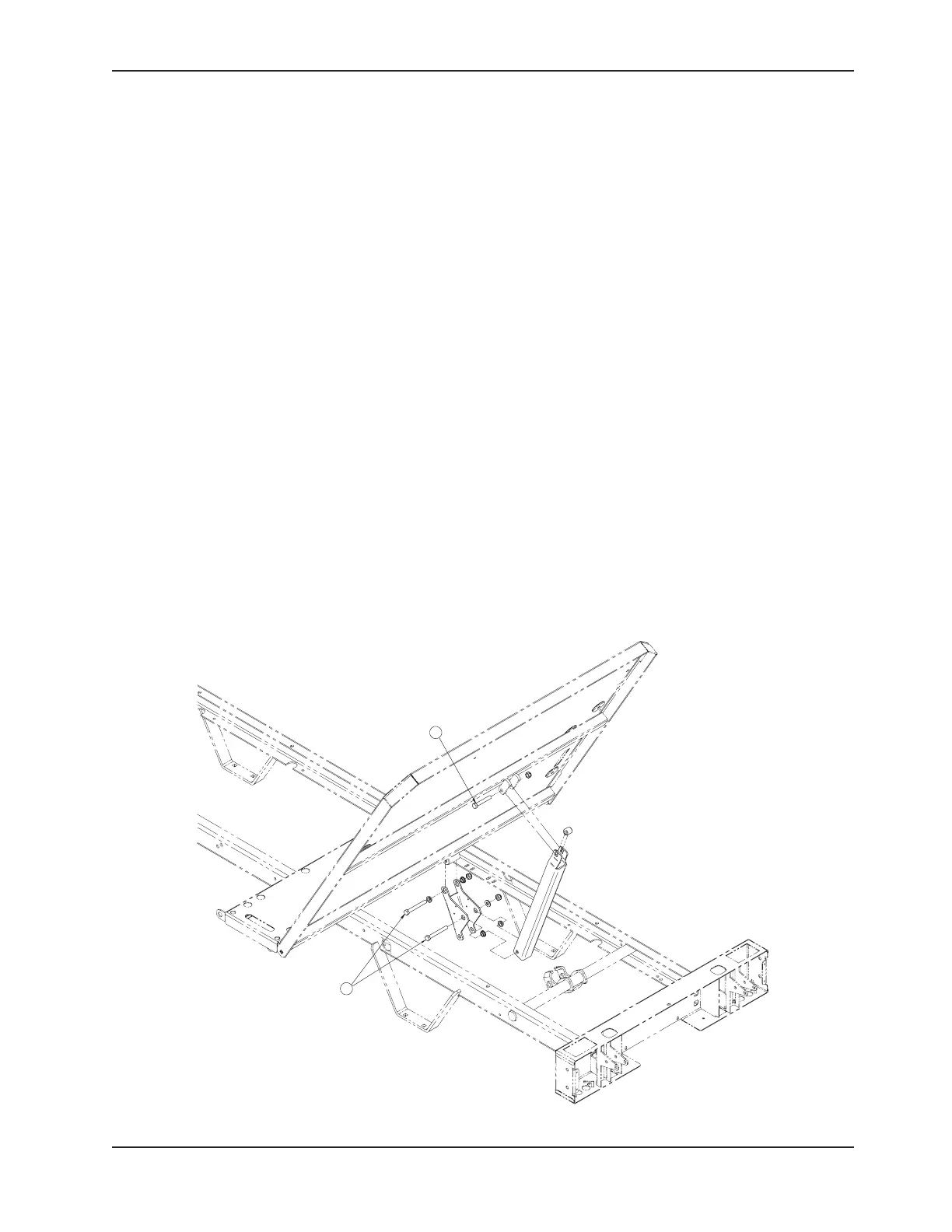

Figure 4.3 B
Service Information
