Tools Required:
No. 2 Phillips Screwdriver •
No. 1 Phillips Screwdriver•
Procedure:
Completely raise the bed and apply the brakes. 1.
Deactivate the Auto Contour function by pressing the Knee Gatch lockout switch at the foot end of the bed. The 2.
lockout switch LED will go off.
Completely raise the Fowler. 3.
Unplug the bed power cord from the wall socket.4.
Head Section Micro Switch
Note
This switch signals to the motor control board that the Knee Gatch must be lowered. The signal is sent during the
lowering of the Fowler when the bed is in the Auto Contour position.
AUTO CONTOUR MICRO SWITCH REPLACEMENT (OPTIONAL)
Service information

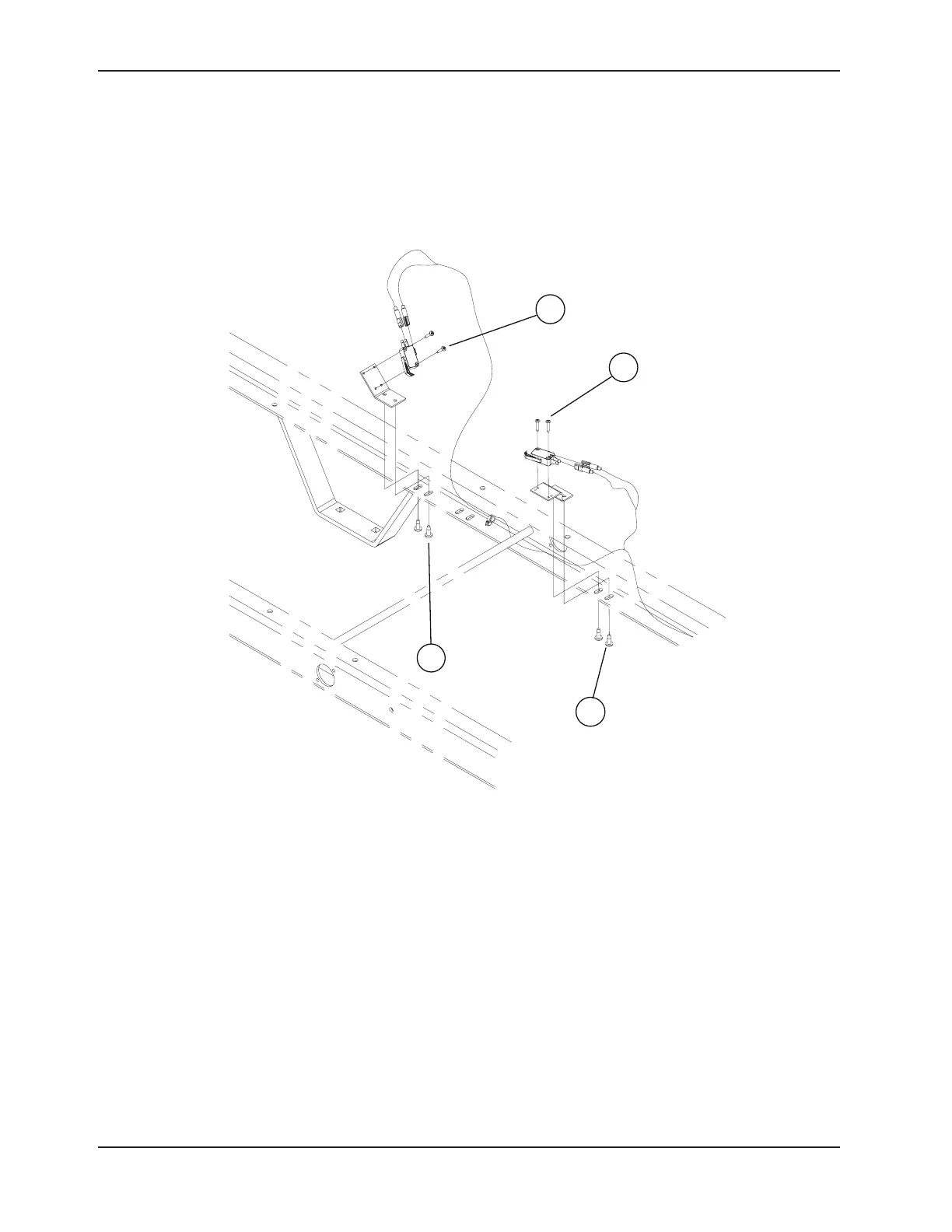

Figure 4.3 E
