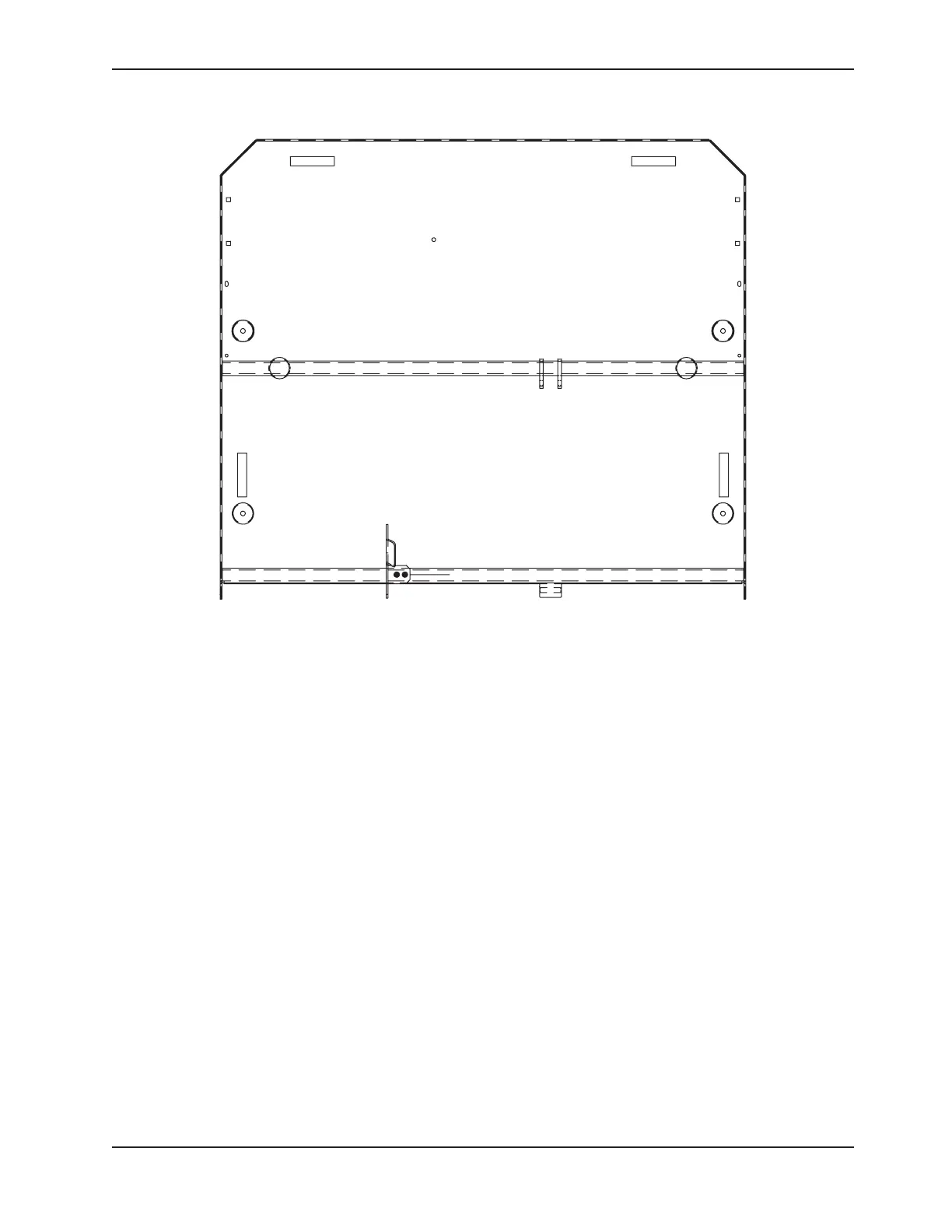

Auto Contour Positioning (For Reference Only: OL230037, Rev. 04)
Item Part No. Part Name Qty.
1 1325P003 Micro Switch 2
2 23-0164Z Micro Switch Support 1
3 23-0451Z Micro Switch Support 1
4 QDF13-0251 Auto Contour Positionning
Connection Cable 1
5 QDF9518 Nylon Ty-Rap Black (0.143 X 8”) 1
6 VV83A9G16 Tapping Screw Pan Phillips
Type B #10 x 1/2” z.p. 6
7 VV87A9A20 Tapping Screw Truss Phillips
Socket #4 x 5/8” Type B z.p 4
8 23-0452G Angle Sensor Arm 1
Auto Contour Positioning
