LUCAS
®
3 Chest Compression System – Service Manual
3328798-002, ©2017 Physio-Control, Inc.
Page 63 of 91

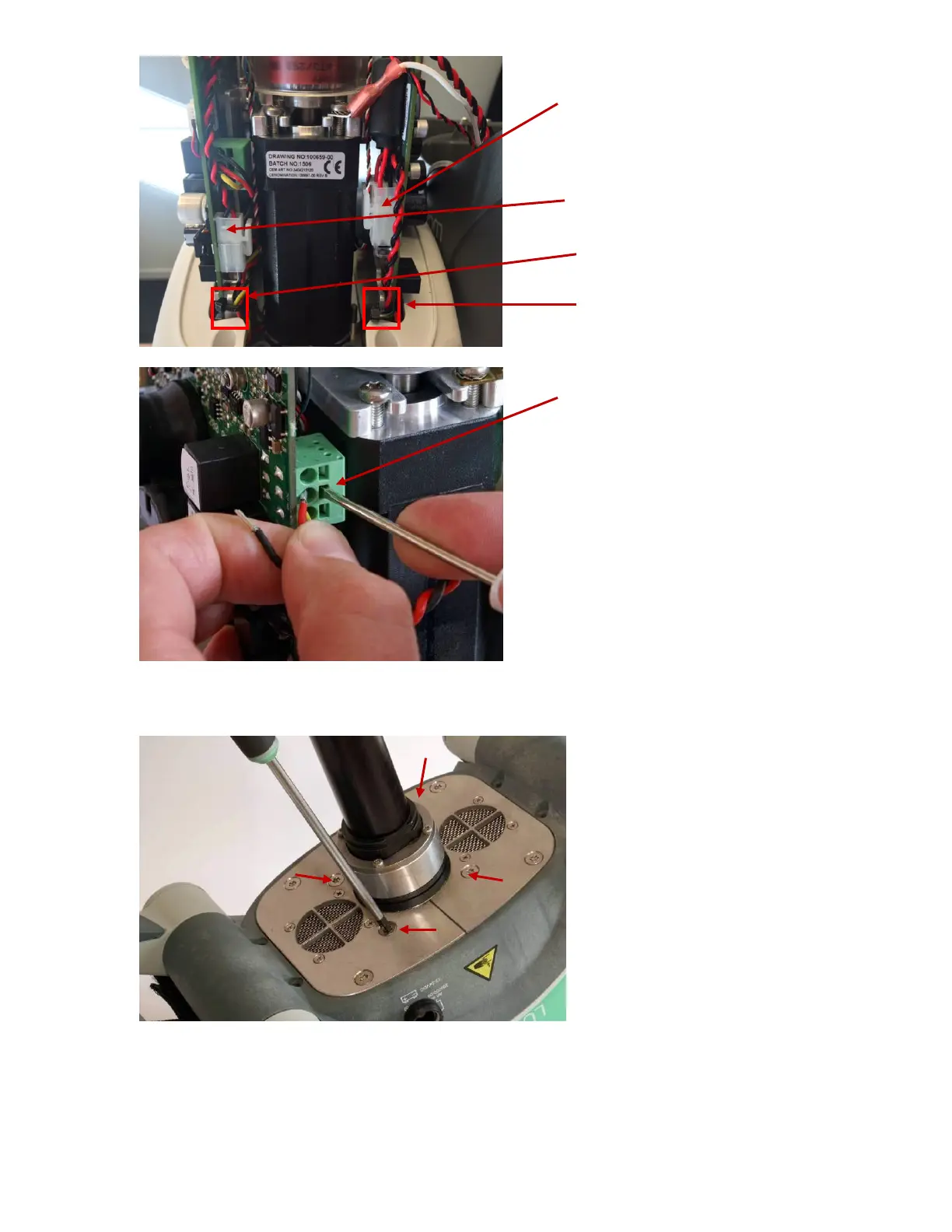

• From beneath, remove the four screws that hold the Compression Module with a Torx 25 (T25)
Screwdriver.
• Remove the two screws that hold the Fan Bracket with a Torx 25 (T25) Screwdriver, and remove the
bracket.
8. Protective Power Cable
9. Control Power Cable
10. Motor Power Cable; use
a small flat screwdriver
to remove the cables,
three wires:
Black (top)
Red (middle)
Yellow (bottom)
Remove if taking out Compression
Module
Remove if taking out Protective
PCB
To Next Page
