Stryker LUCAS 3 Service Manual

LUCAS
®
3 Chest Compression System – Service Manual
3328798-002, ©2017 Physio-Control, Inc.
Page 64 of 91
• Loosen the two remaining screws on the other bracket without removing them.

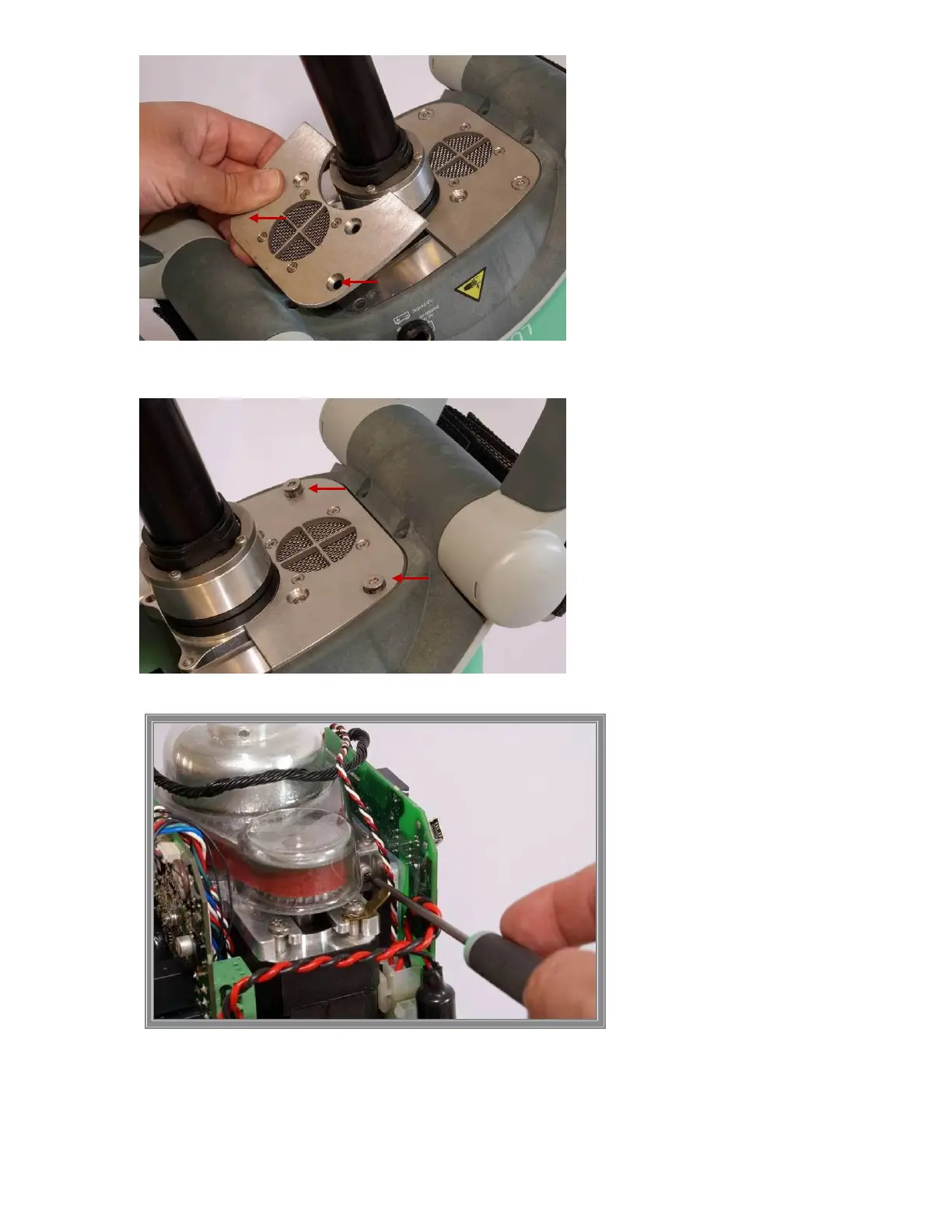

• Remove the four screws that hold the PCB brackets against the Compression Module, two screws on each
side according to the pictures below with a Torx 10 (T10) Screwdriver

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
