EN-8
Getting Started
Powering the SDC3 On and O
• To power on the SDC3 console, press the power button located at the bottom left corner of
the front panel� The button will shine green when the system is powered on�
• To power o the system, press the power button again and wait for the LED to turn o�

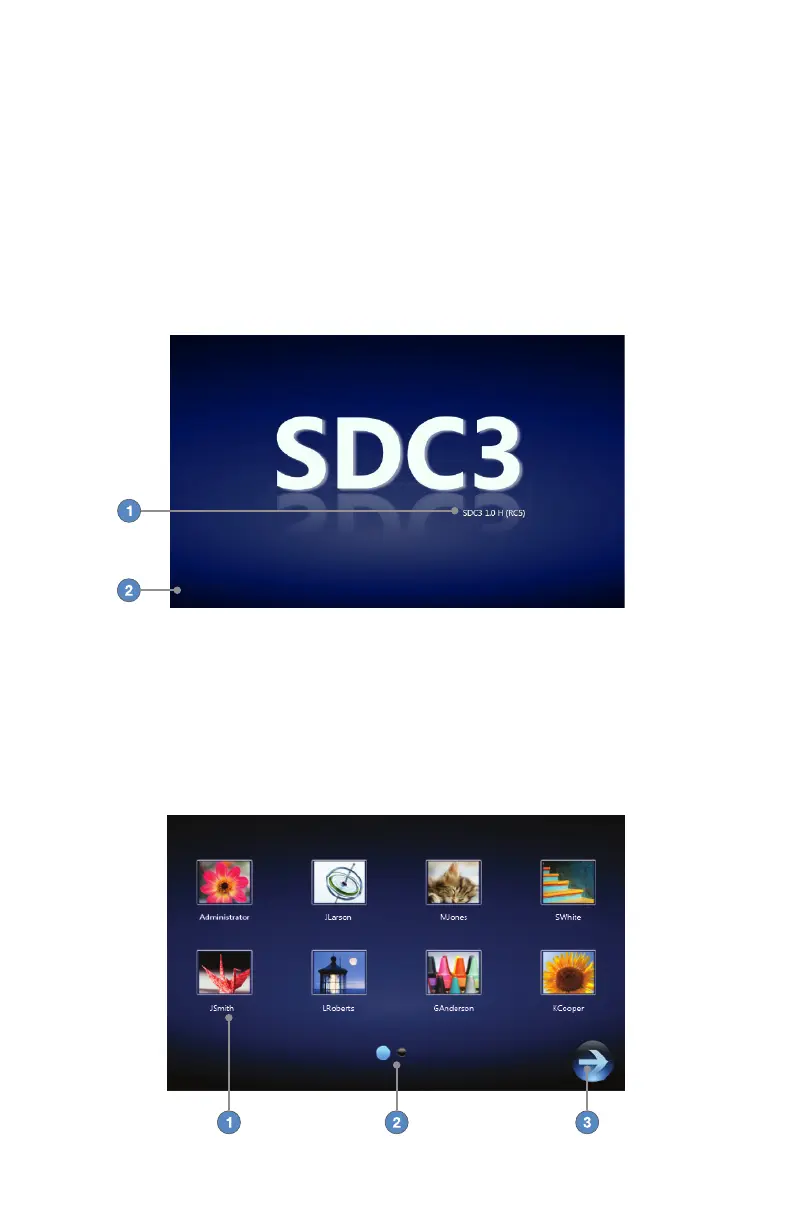

• As the system starts up, the SDC3 will display the Stryker logo, a black screen, then the
following screen� After a user is selected, the system will say, “Greetings� One moment please�
SDC Ready� Digital Capture Initializing�”
1� The version of the SDC3 software appears beneath the SDC3 logo�
2� Loading progress displays at the bottom of the screen�
Selecting a User Account
After startup, the User Accounts screen will appear if there are multiple user accounts saved in the
SDC3 system�
