S CLASS™ cutter User’s Manual
Setup 1-22
¾ Extended load.
The function extended load makes it possible to define the limits of the Y axis so that
the cutter can cut outside the pinch rollers. Media has to loaded before this function
can be used.

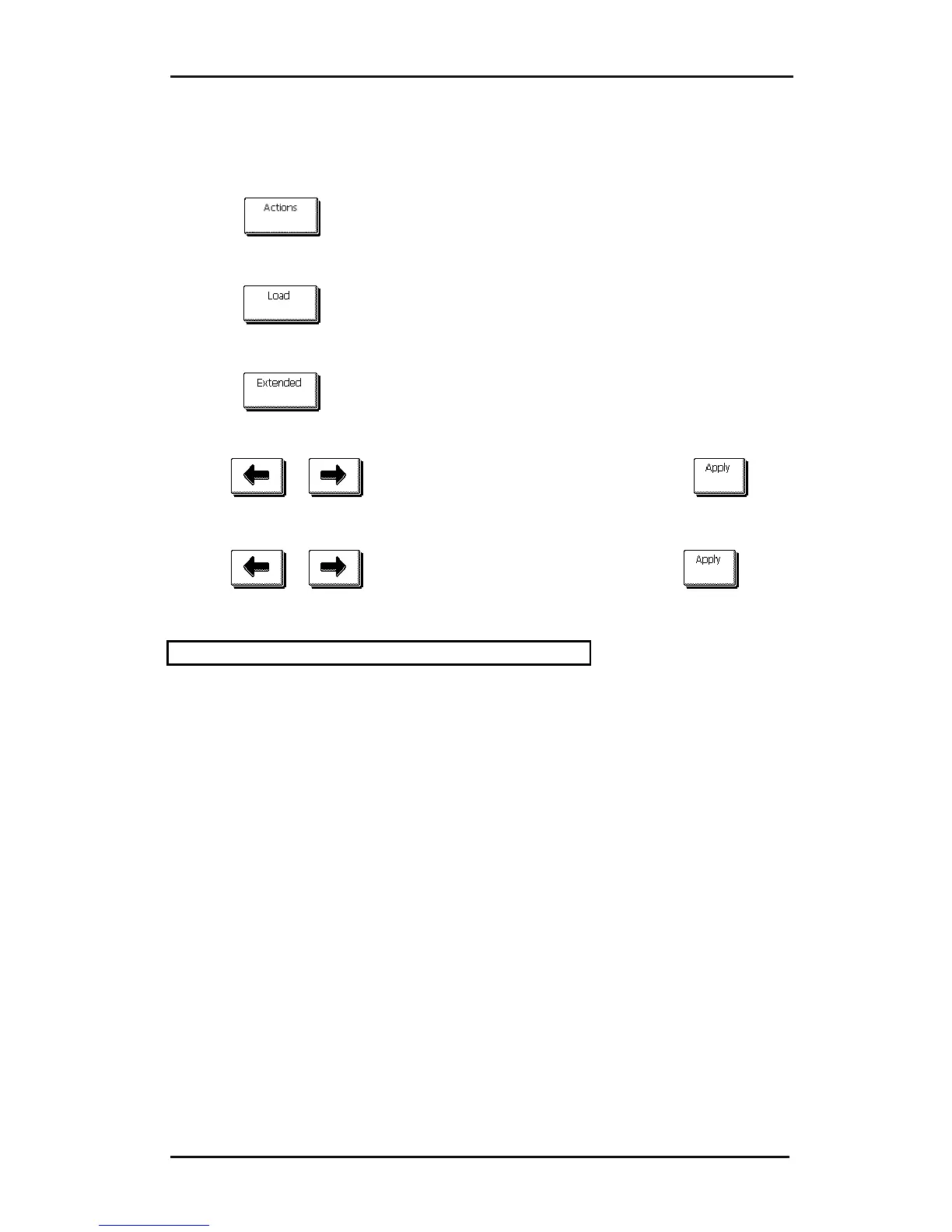

1. Press
.
The actions menu will appear on screen.
2. Press
.
A message will appear letting the user choose between roll and sheet.
3. Press
.
Two arrows will appear, together with an “apply” button.
4. Use
or to reposition the right Y-axis limit. Then press .
Two arrows will stay on the screen, the tool carriage will move to the left Y-axis
limit.
5. Use
or to reposition the left Y-axis limit. Then press .
The cutting area in the Y-axis has now been redefined.
Note: Tracking is not guaranteed when using this mode.
