S Class 2 cutter Service manual

Replacements guidelines 2-8

screw

ND5000- 9694(3 per motor)

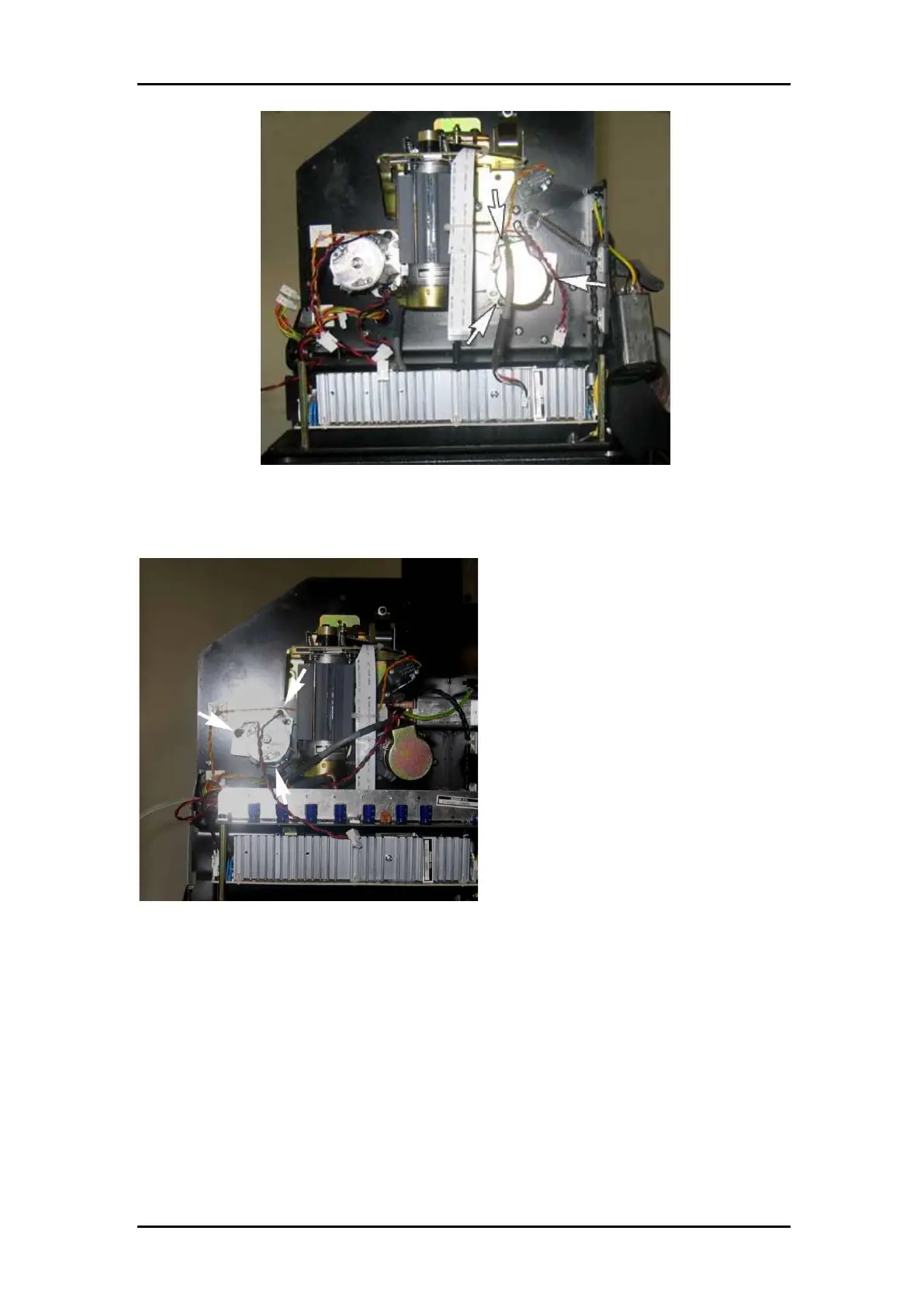

X motor with encoder and pulley S2

395-602

screw

ND5000- 9694(3 per motor)

X motor without encoder with pulley

395-400
