S Class 2 cutter Service manual
Maintenance and Cleaning 5-3

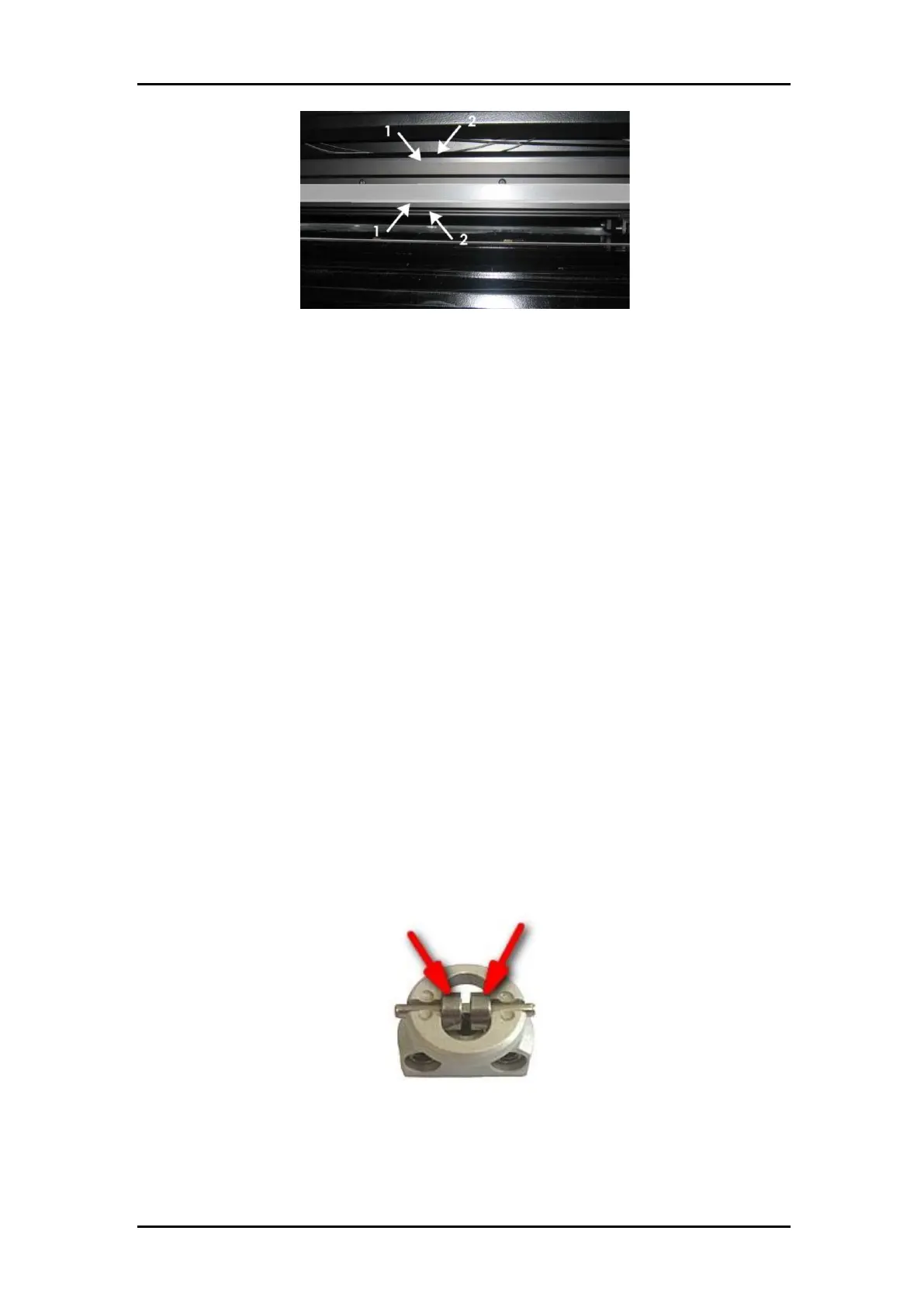

FIG 5-3
SLIDING SURFACES ON Y-GUIDING
Over time, there may be some accumulated residue on these sliding surfaces and on the
rollers of the tool carriage.
Cleaning the sliding surfaces of the Y guiding:
1. Switch machine of.
2. Take a soft cloth dampened with isopropyl alcohol or mild detergent.
3. Clean surfaces, when the tool carriage is in the way, push it gently to the left or right.
5.5 Cleaning the nose piece (tangential machine only)
The nosepiece may accumulate residue from the vinyl that will result in poor cut quality.
Typical for a dirty nosepiece is an interruption of the cut line every 12mm (0.5”).
Cleaning the nose piece:
1. Gently remove the knife by turning the knife holder counterclockwise.
2. Observe the orientation of the nosepiece and then push it out of its holder.
3. Remove any remaining vinyl residue using a brush or a pair of tweezers.
4. Replace the nosepiece.
5. Install the knife.
