S Class 2 cutter Service manual
Calibration 3-6
3.3 Head calibration
3.3.1 Knife calibration
3.3.1.1 The knife has to be calibrated when:
a knife is replaced.
the tool carriage has been replaced
the PCB has been replaced or defaulted
3.3.1.2 Pressure calibration (drag and tangential):
The pressure calibration is only for the drag knife important for the knife depth. The
knife depth of a tangential knife should be set mechanically (amount the knife tip
protrude between the two rollers of the nose piece).

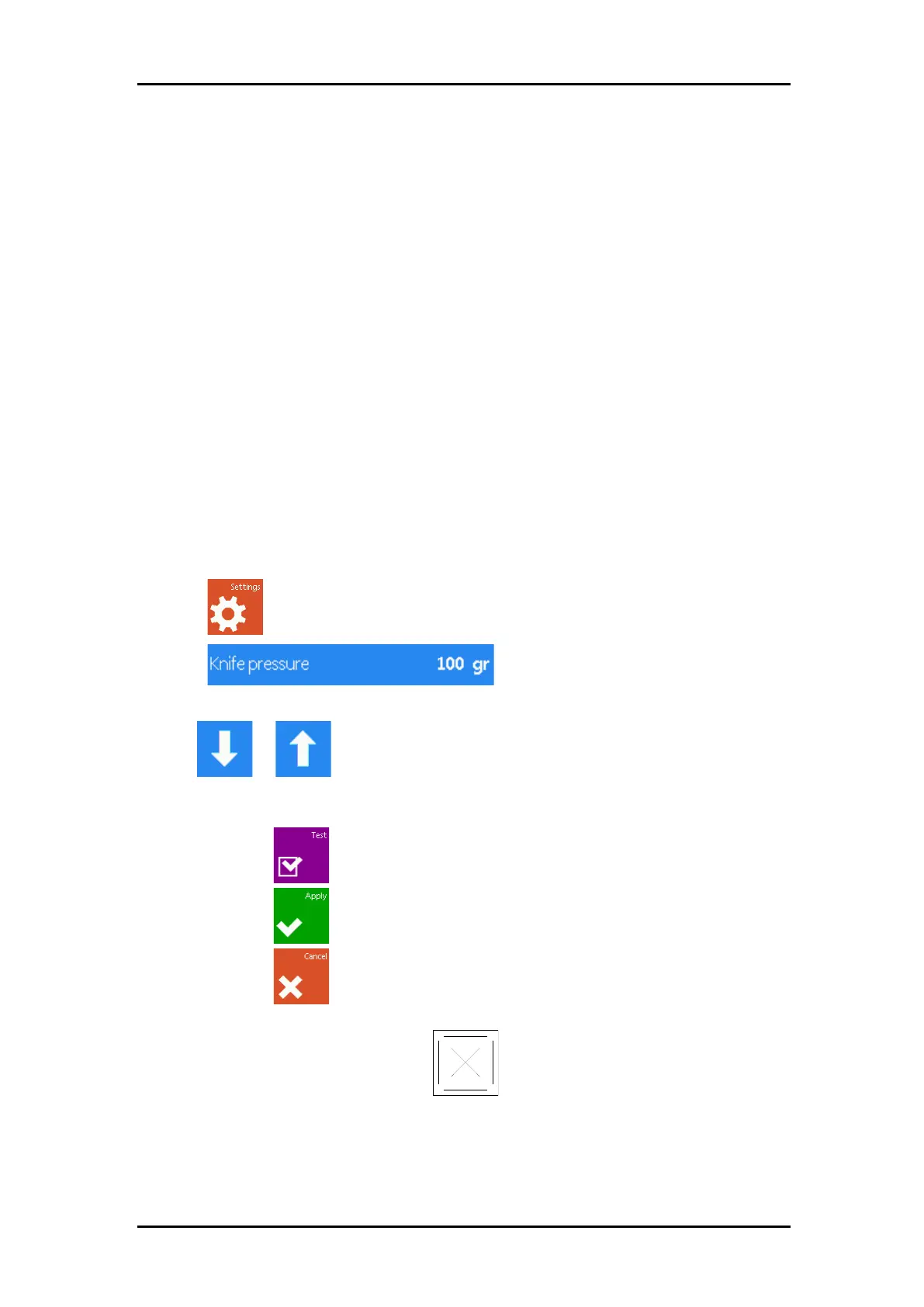

1. Power on the cutter, load media, and mount knife.
2. Press .
3. Press button.
4. The current tool pressure will appear on screen.
5. Use or to change the pressure.
The new value (in bold) will change.
1. Press to perform the internal tool pressure test.
2. Press to confirm and leave the tool pressure menu.
3. Press to leave the pressure unchanged.
FIGURE 1-30:
KNIFE PRESSURE TEST PATTERN
Peel out the rectangle and inspect the backing.
