Summa S2 CLASS - Knife Calibration (Tangential Only)

S Class 2 cutter Service manual
Calibration 3-8
3.3.1.4 Knife calibration (tangential only):
The purpose of the knife calibration routine is to detect and, if need be, to correct problems
related with the concentricity of the tangential knife blade.

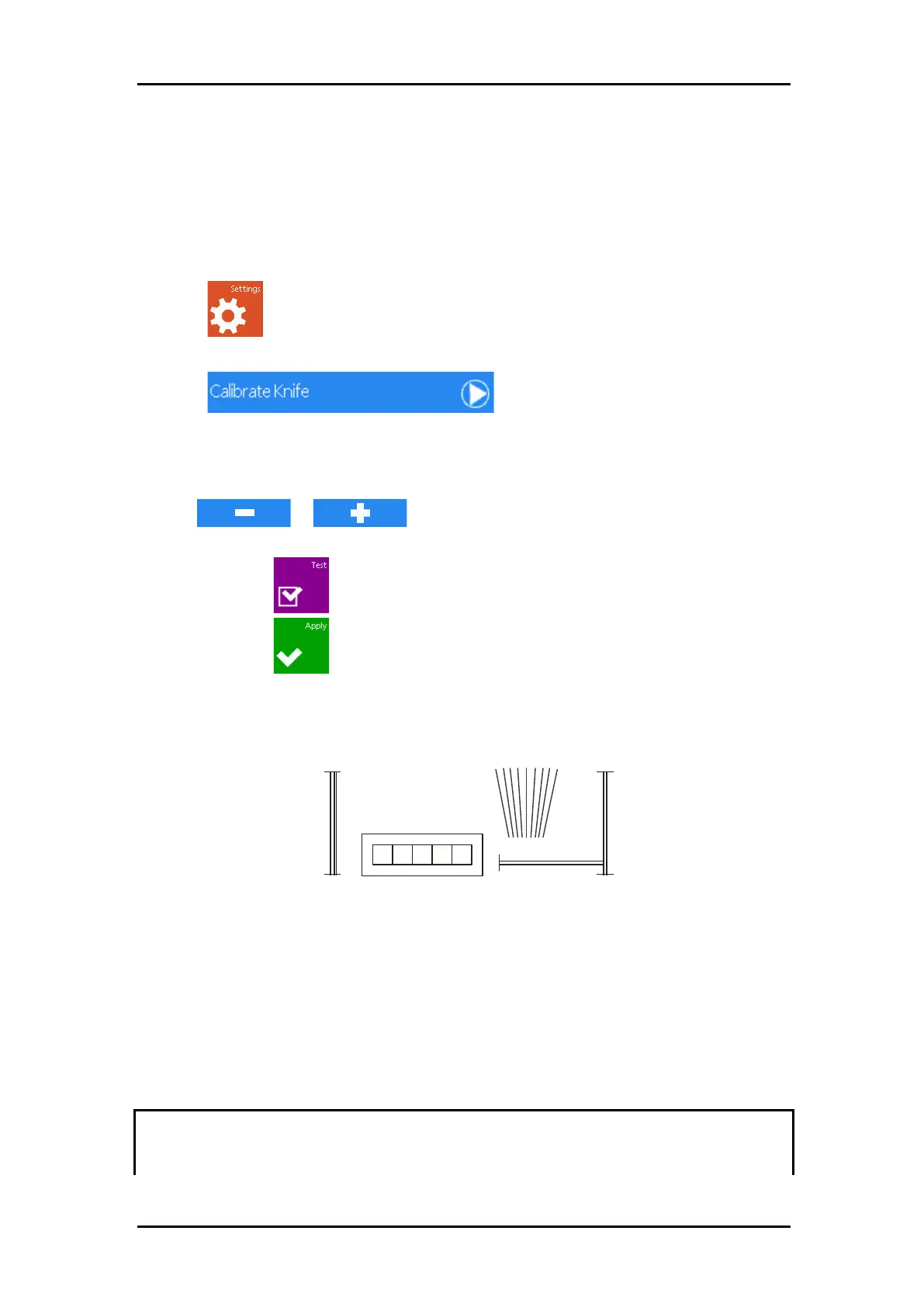

1. Power on the cutter, load media, and mount tangential knife (see section 1).
2. Press .
3. The main menu will appear on the screen.
4. Press .
5. The three knife parameters will appear on screen.
6. Select the parameter to be changed.
7. The selected parameter will be highlighted on the touch screen.
8. Use or to change the parameter.
The value (inverse) will change.
1. Press to perform the internal knife calibration test.
2. Press to confirm and exit the knife calibration menu.
When the knife offset is set correctly, the test pattern looks like this:
3-2 CORRECT TANGENTIAL KNIFE CALIBRATION TEST
Rectangle 1 and 2 should weed out (remove) smoothly without sticking to the rest of the
vinyl.
The fan shaped pattern 3 should have a clear cut line in the middle; the ones at the sides
show burs.
The squares in 4 should be aligned and equal in size.
The 4 vertical cuts in 5 should be clear without any burs and straight all the way from top to
bottom (not rounded near the horizontal lines).
NOTE: It is possible that not all test patterns come out perfect (depends on the type of
vinyl). Test pattern 1 and 4 are the most important test patterns. They should be as close to
perfect as possible.
1
2
3
4
5
