Summa S2 CLASS - 5.3 Cleaning the Media Sensors; 5.4 Cleaning the Y guiding

S Class 2 cutter Service manual
Maintenance and Cleaning 5-2

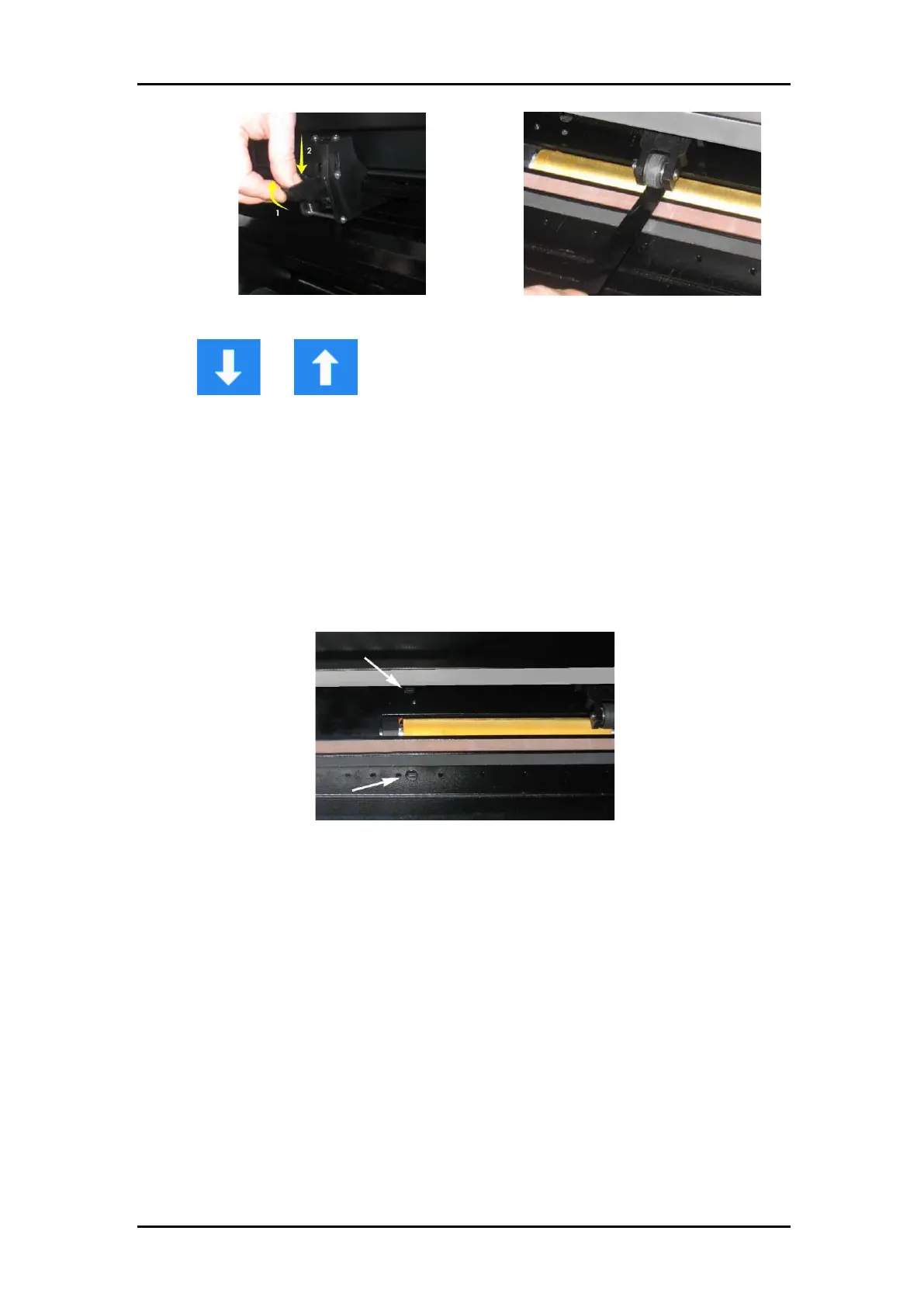

FIG 5-1A
LIFTING THE PINCH ROLLER
FIG 5-1B
PLACEMENT OF VINYL STRIP
8. Use and to move the piece of vinyl back and forth several times until
all residue is removed from the drive sleeves.
9. Repeat for the other drive sleeves.
5.3 Cleaning the Media Sensors
Over time, the media sensors may become dirty with accumulated residue from the media.
This may cause the cutter to malfunction.
Clean the media sensors by wiping them out with cotton swabs.
FIG 5-2
MEDIA SENSORS S CLASS CUTTERS
5.4 Cleaning the Y guiding
There are 4 areas on the y guiding on which the tools carriage slides from left to right.
Two areas (1) are visible on the front side of the guising. The other 2 surfaces (2) are on the
back of the guiding, directly after the areas that are visible at the front.
Figure below shows the areas. Even though the shape of the y guiding may differ from model
to model, the areas stay located on the same place at the top and bottom of the guiding.
