2.14 Replacing the Power Supply
To replace the power supply, proceed as follows:
1. Remove the right-hand cover (see Section 2.4, Removing the right-hand cover).
2. Remove the main PCB (see Section 2.13, replacing the main board).

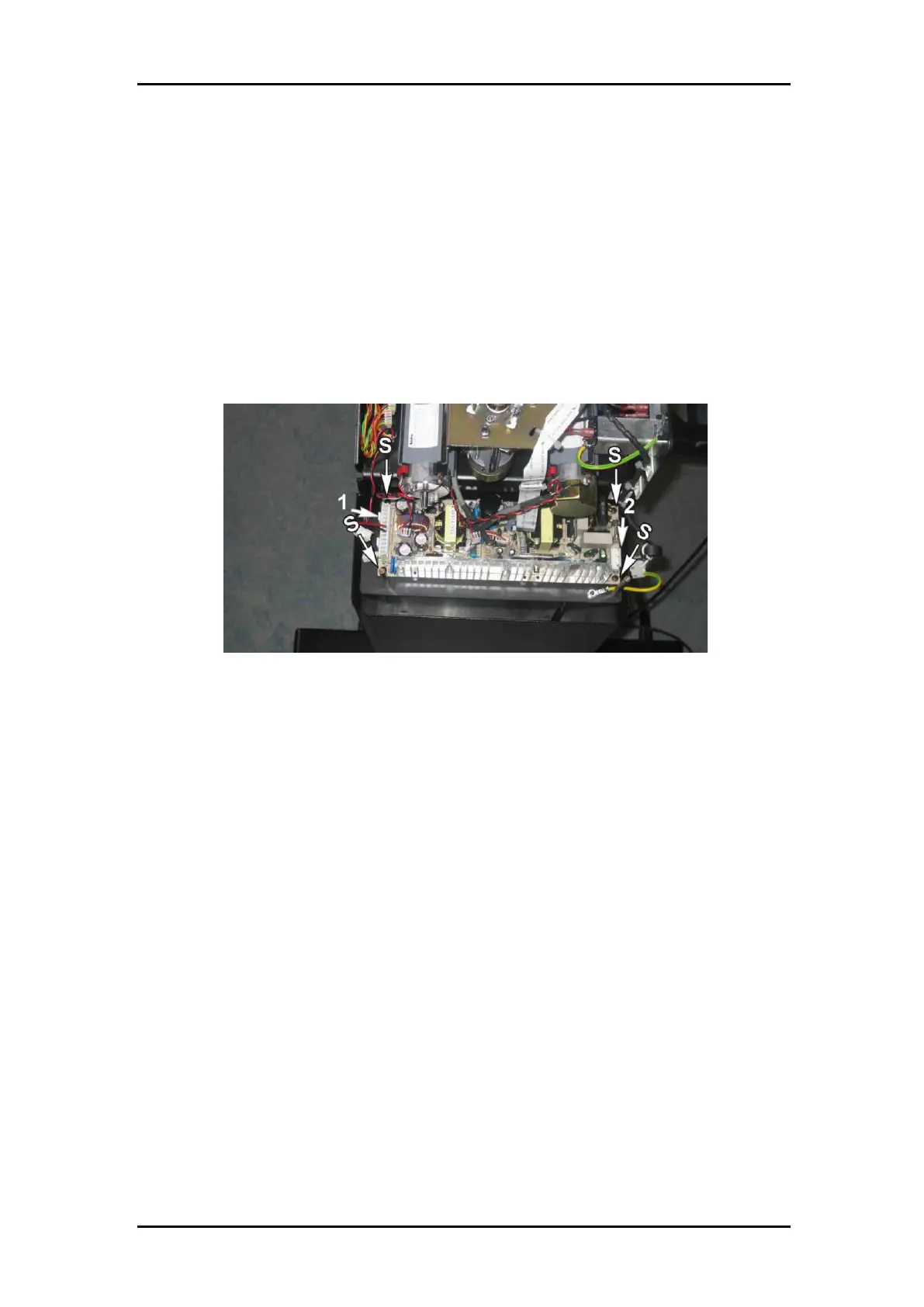

3. Disconnect the 2 connectors. Pay close attention to the positioning of the connectors.
They should be returned to their original location when re-installed.
4. Remove 4 screws.
To re-install, proceed in the reverse order of removal. Make sure to firmly tighten all screws.
