S Class 2 cutter Service manual

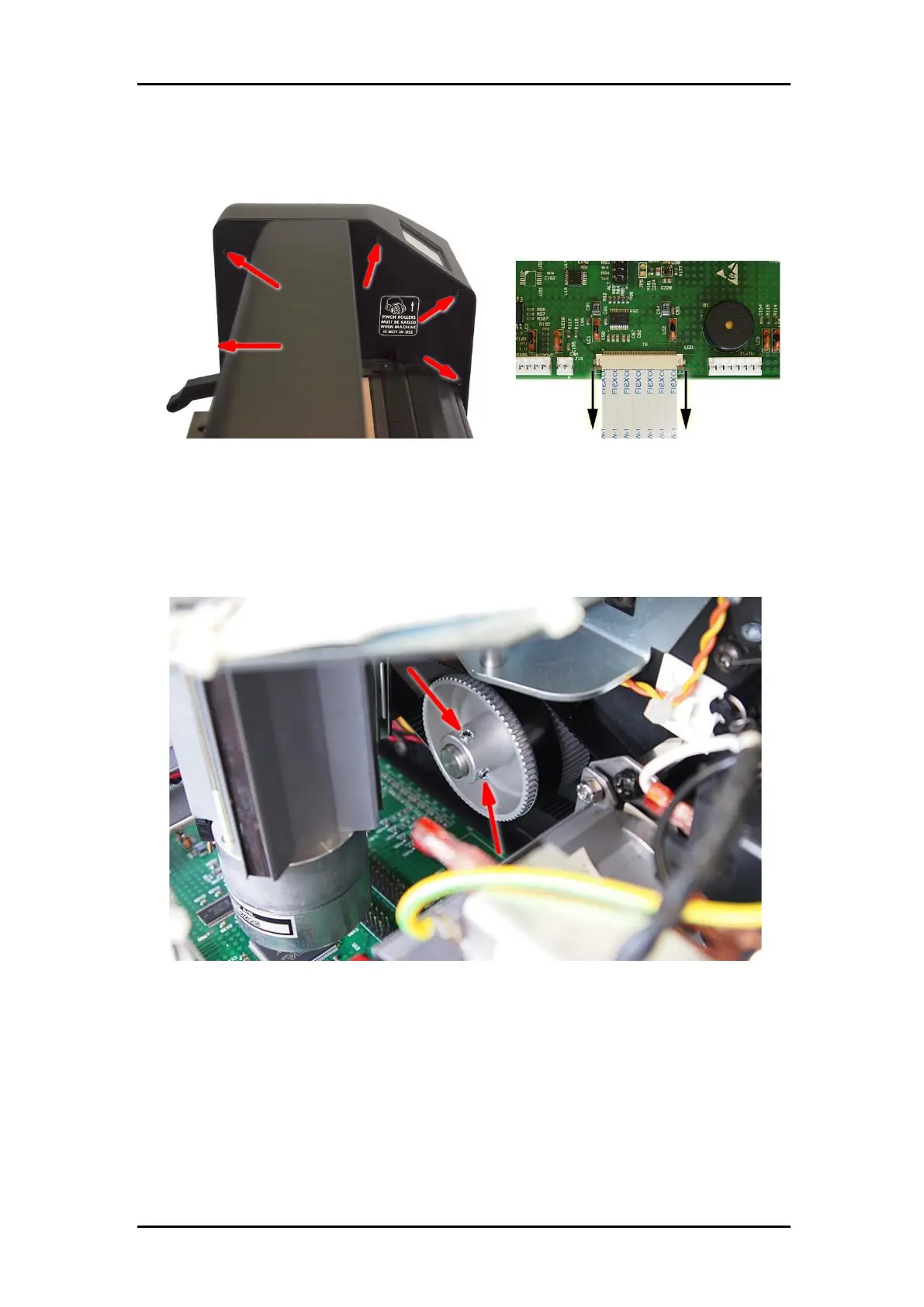

Replacements guidelines 2-34
this flat cable at the main board end by sliding away the latch on the connector, then
pull gently on the flat cable.
Optionally remove the left end cover (5 screws) and the top cover (3 screws on each
side). In case the left end cover and top cover are not removed, you may protect it
from scratches. Slide the cutter head to the left of the machine to prevent the flat
cable from dropping out.
Remove the pulley from the drive shaft: loose the 2 setscrews M4 with the ‘Hex Key 2
mm’. Note the distance between the pulley and the side plate.
Put the machine upside down.
Remove the bottom cover (10 to 16 screws, depending on machine size). The wire
from the vacuum fan is fixed to the bottom plate with ty-wraps. Cut the ty-wraps
closest to the main board. Cut the ty-wrap coupling the two cables. Disconnect the
fan.
