S Class 2 cutter Service manual
Replacements guidelines 2-36

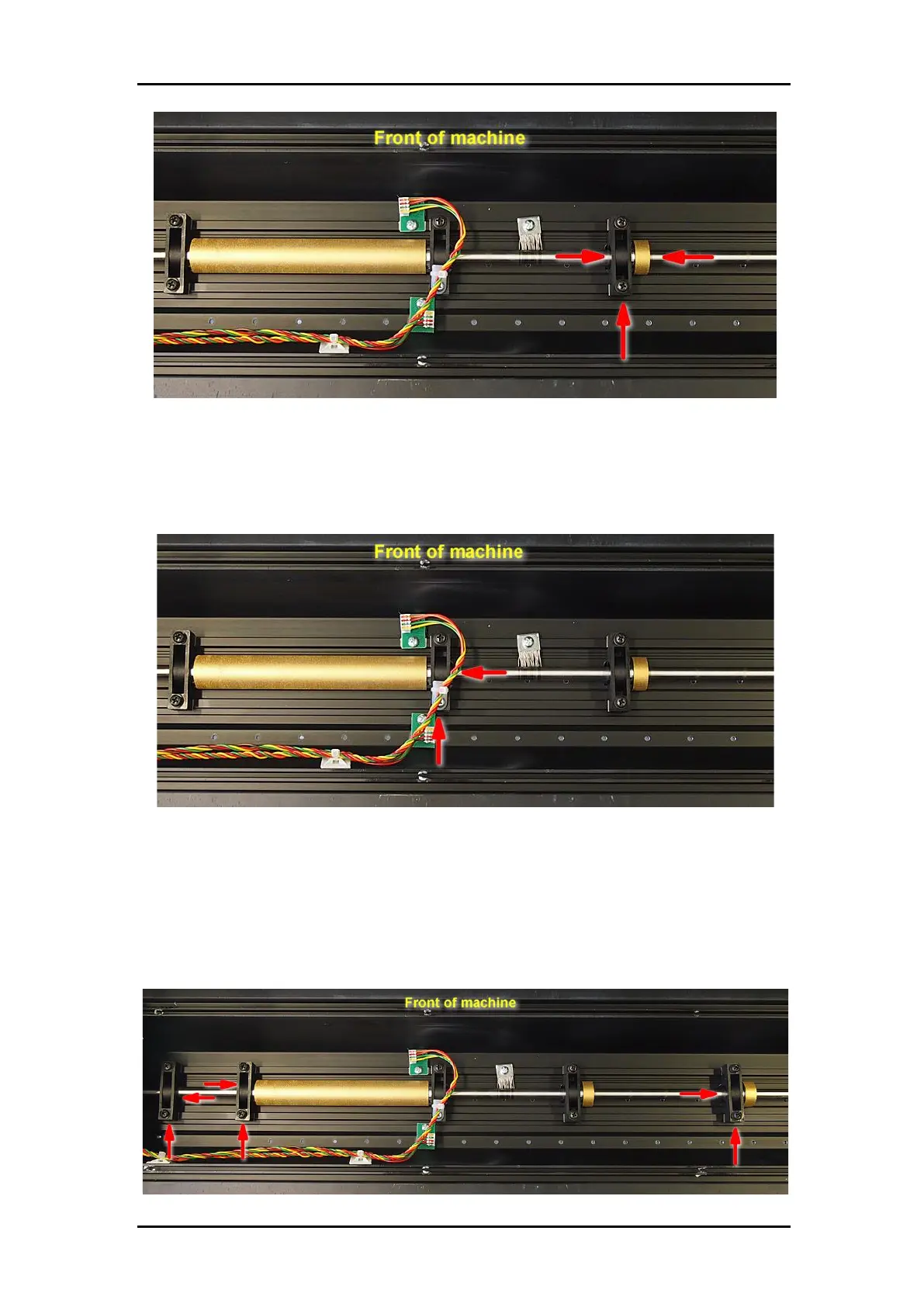

Push the bearing block to the right of the wide sleeve towards the wide sleeve (to the
left), while pushing the bearing block to the front of the machine. Fix the bearing
block with the black and white screw (ty-wrap holder becomes between the white
screw and the bearing block). This prevents the drive drum from shifting left to right.
Now firmly tighten the screws of the other bearing blocks. Make sure they are
positioned straight and to the front of the machine, and that they do not have any
play. Gently press the bearing blocks against the sleeves when tightening the screws.
Check if none of the small sleeves touch the sides of the holes in the base plate. If so,
reposition the whole drum left or right. Work from the left side of the drive drum to
the right side.
