S Class 2 cutter Service manual

Basic Operation 4-12

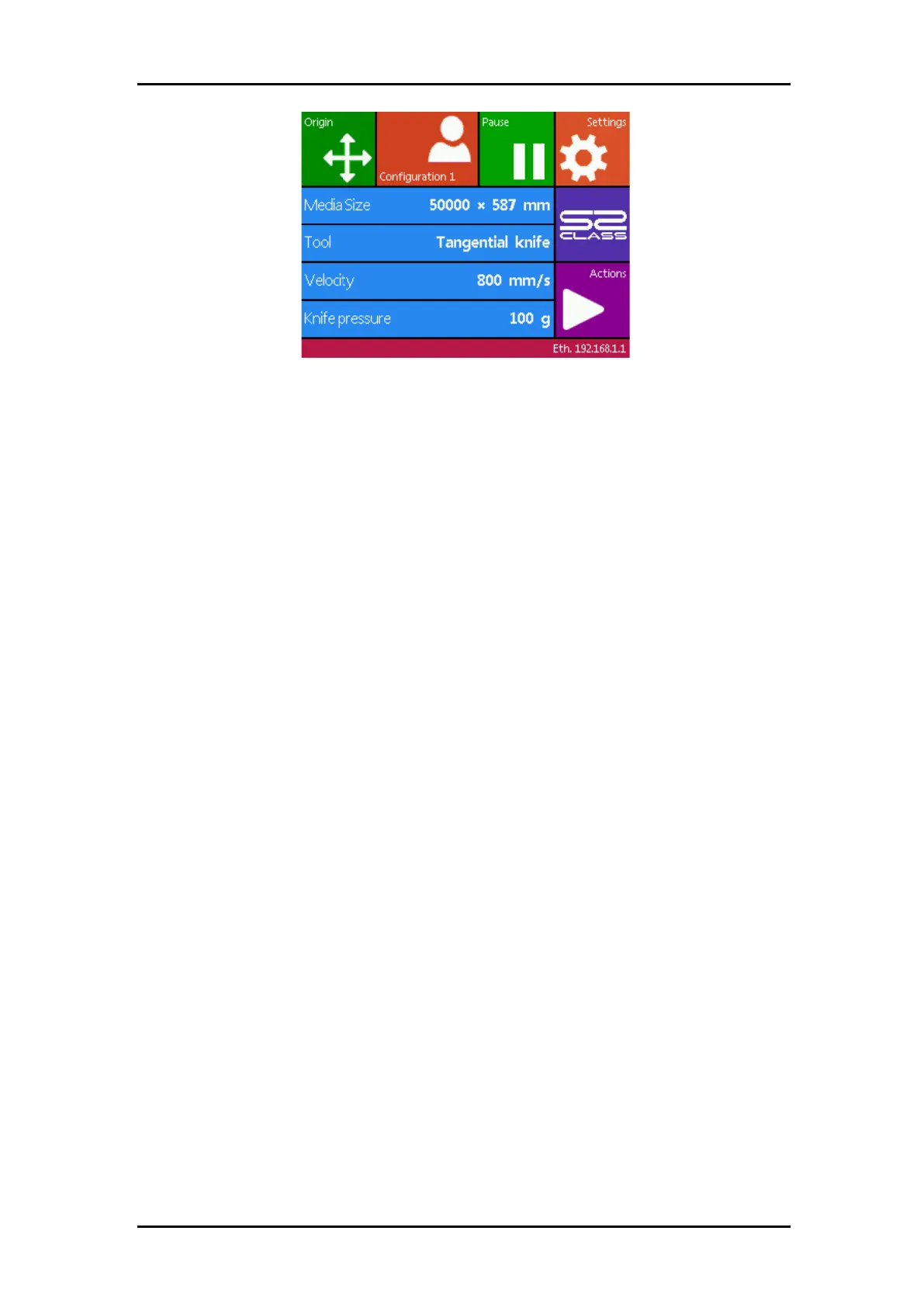

If the Pause button is pressed, then the tool can be moved around the working area with

arrow buttons.
