Appendix D Connecting to the 2510 Array with Other Topologies 125

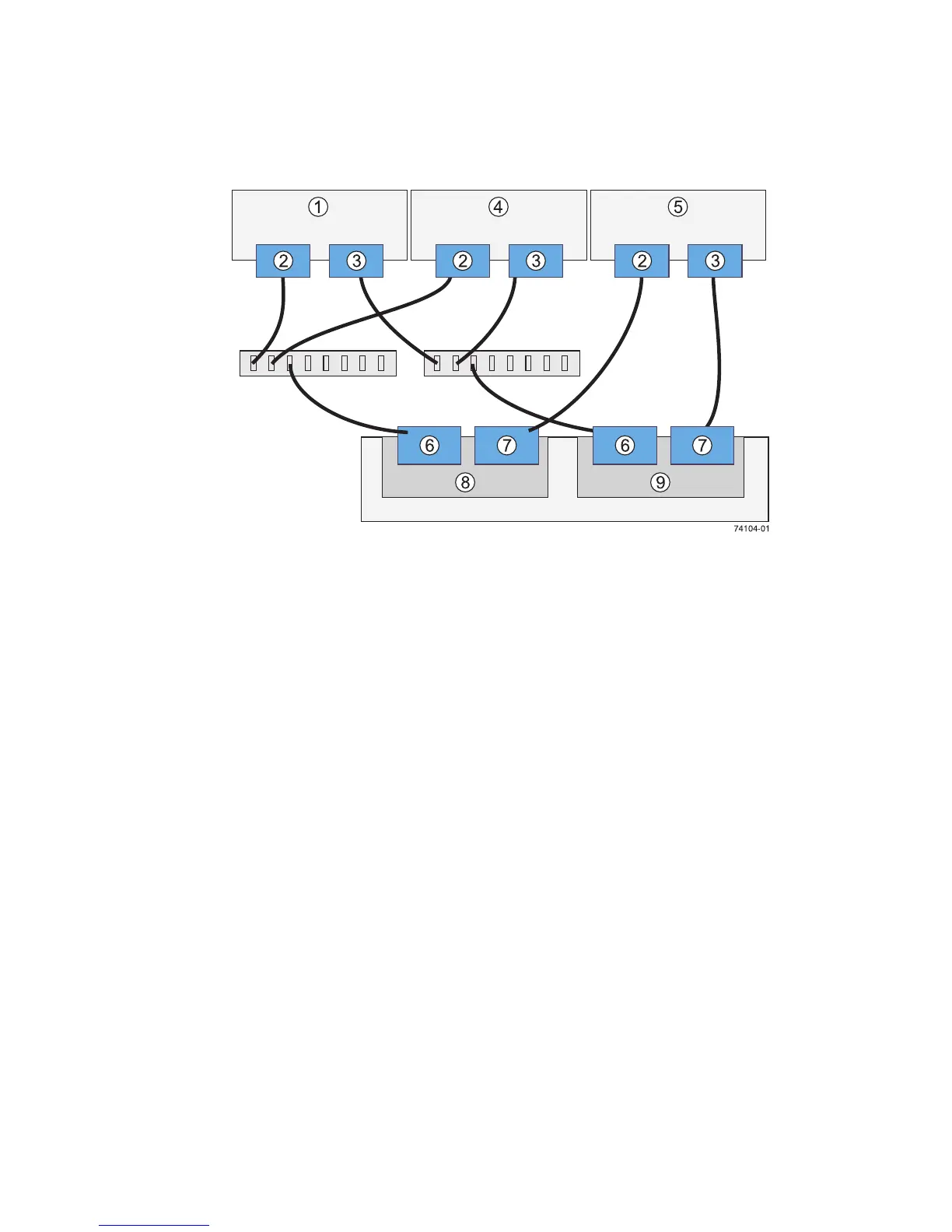

FIGURE D-6 Mixed Topology – Three Hosts Connected Through a Switch or Connected
Directly
1. Host 1
2. NIC 1
3. NIC 2
4. Host 2
5. Host 3
6. Host Port 1
7. Host Port 2
8. Controller A
9. Controller B
