78 Sun StorageTek 2500 Series Array Hardware Installation Guide • September 2009
Powering On the Storage Array
Use this procedure to turn power on for all trays installed in the cabinet (FIGURE 7-1).
Note – The order in which you power up the trays is important. Be sure to power
on the controller tray last in order to ensure that the disks in the drive expansion
trays have enough time to spin completely before being scanned by the controllers in
the controller tray.

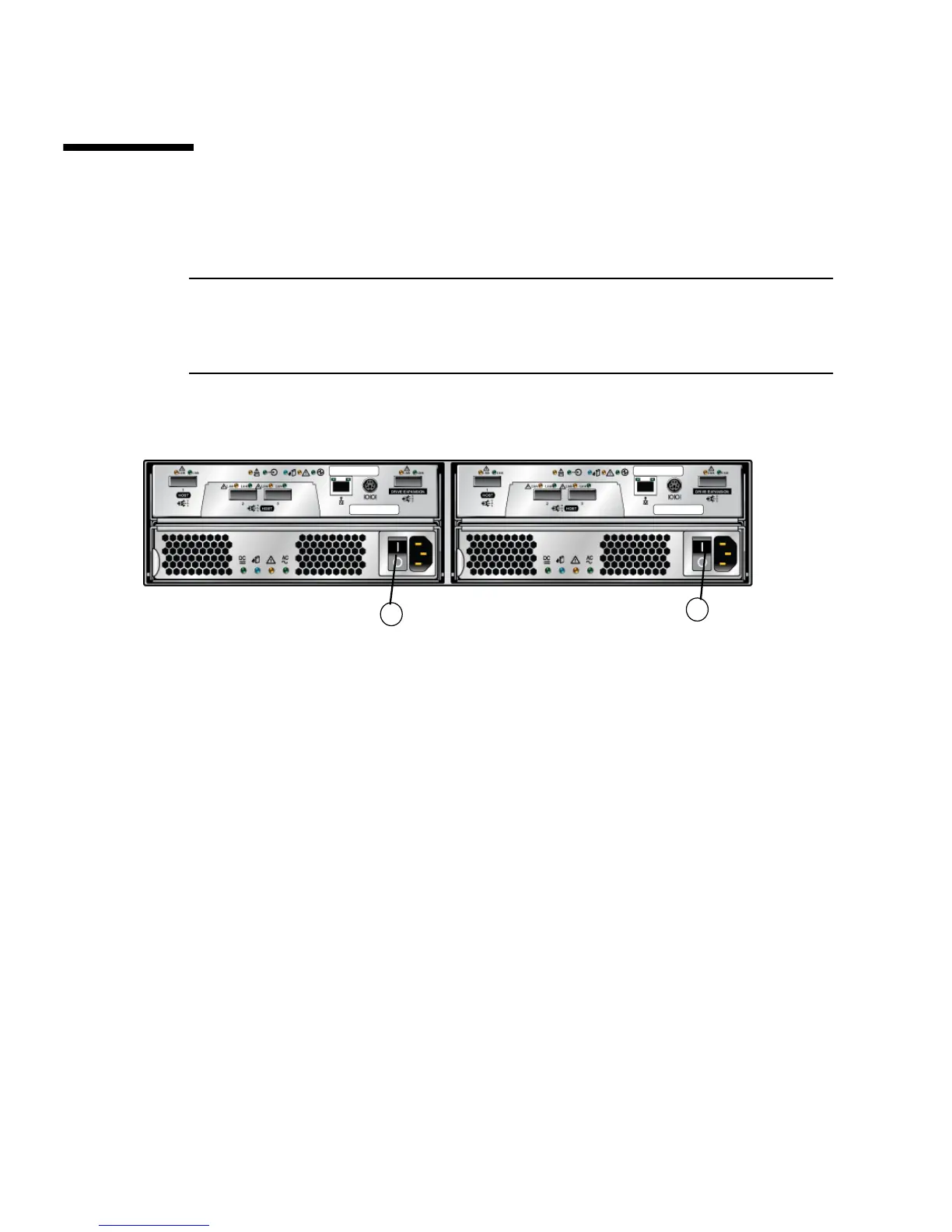

FIGURE 7-1 Tray Power Connectors and Switches
1. Prepare the power cables as specified in “Connecting the Power Cables” on
page 45.
2. Turn on the cabinet circuit breakers, if applicable.
3. Press the power switches at the back of each expansion tray to the On position.
While the tray powers on, the green and amber LEDs on the front and back of the
controller tray turn on and off intermittently. Depending on your configuration, it
can take several minutes for the tray to power on. When the power-on sequence is
complete, the LEDs are steady green.
Wait until all the disk drive indicator lights on the expansion trays are steady
green before proceeding to the next step.
4. Press each power switch at the back of the controller tray to the On position.
5. Check the status of each tray.
After the power-on sequence is complete, confirm the following:
■ The green OK/Power LEDs on each drive in the tray are steady on.
