Sun Microsystems 2500 - Host Cabling Configurations - Dual Controller

124 Sun StorageTek 2500 Series Array Hardware Installation Guide • September 2009
7. Host Port 2
8. Controller A
Host Cabling Configurations – Dual Controller

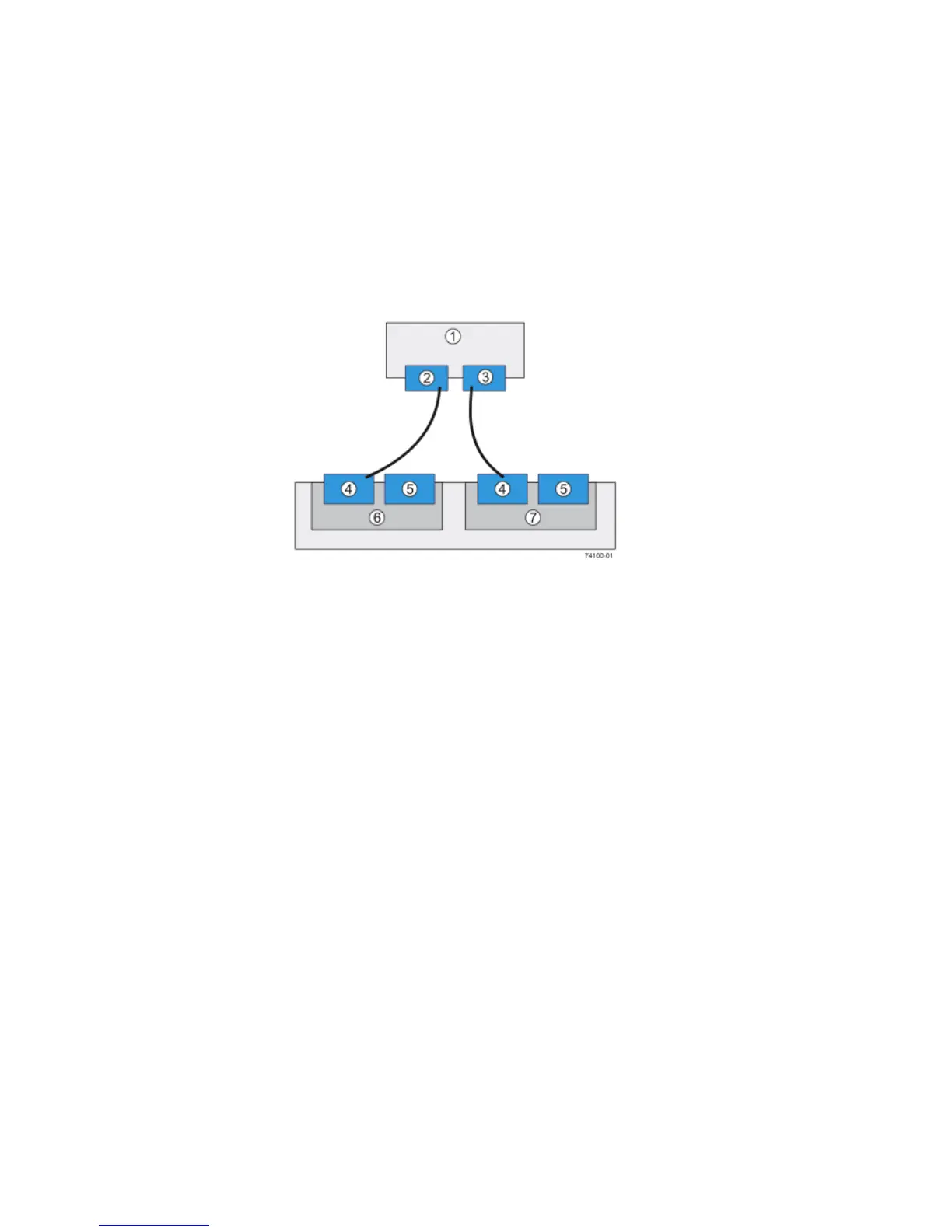

FIGURE D-5 Direct Topology – One Host Connected to Each Controller
1. Host
2. NIC 1
3. NIC 2
4. Host Port 1
5. Host Port 2
6. Controller A
7. Controller B
