Sun Microsystems 2500 - Page 15

Chapter 1 Tray Overviews 3

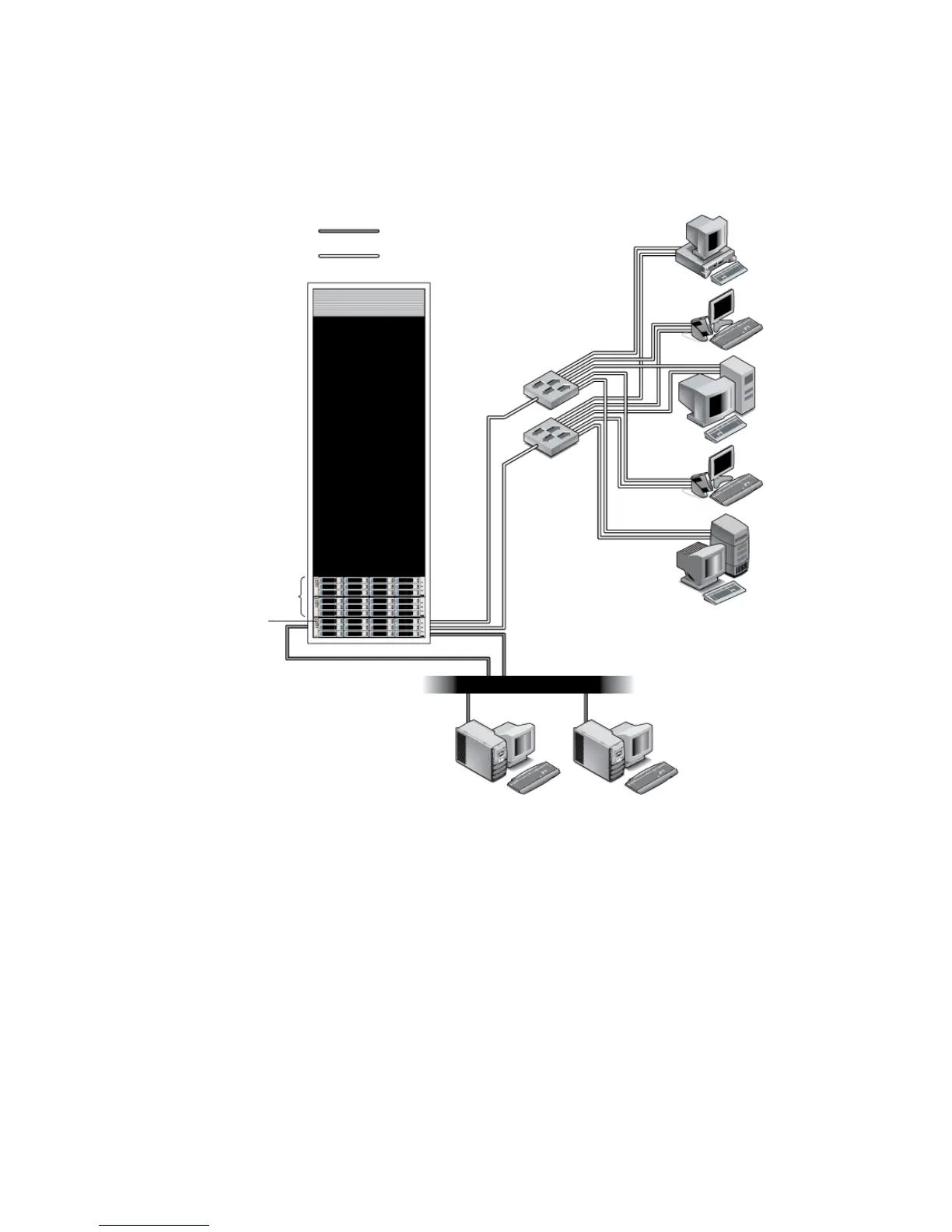

FIGURE 1-1 Sun StorageTek 2500 Series Array Connection Example Using Fibre Channel
Expansion trays
Controller tray
Local
management host
Remote
management host
Host 1
Host 2
Host 3
Host 4
Redundant Fibre Channel
FC switch
FC switch
Ethernet out-of-band
Data hosts
Host 5
