Chapter 1 Tray Overviews 23

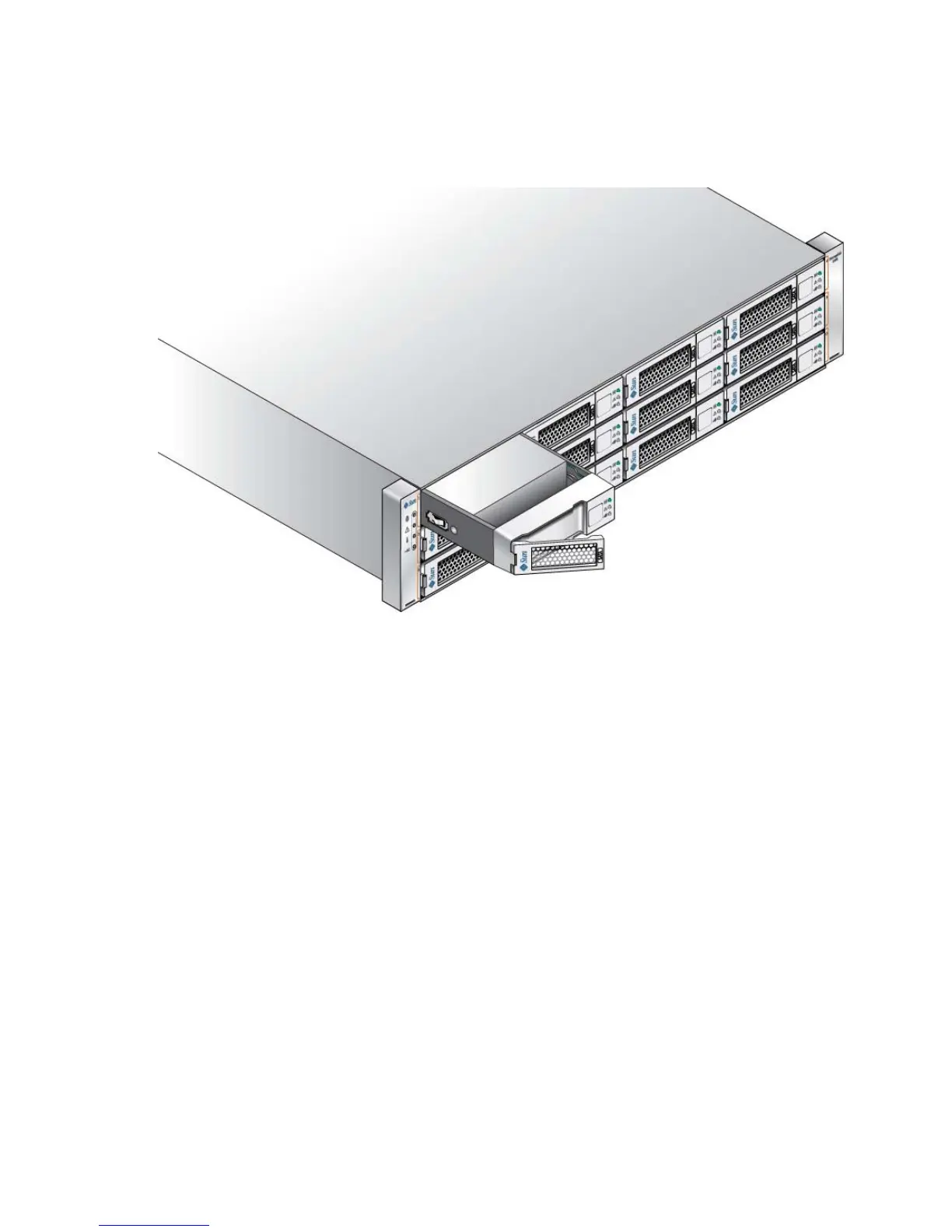

FIGURE 1-15 Disk Drives
The physical locations of the disk drives are numbered 1 through 12, from left to
right, and from top to bottom. The right end cap has numbers on the side showing
the numbers of the adjacent drives. The Service Advisor feature of the Common
Array Manager software automatically detects a disk drive’s tray ID and slot
designation.
