Chapter 2 Installing Trays 43

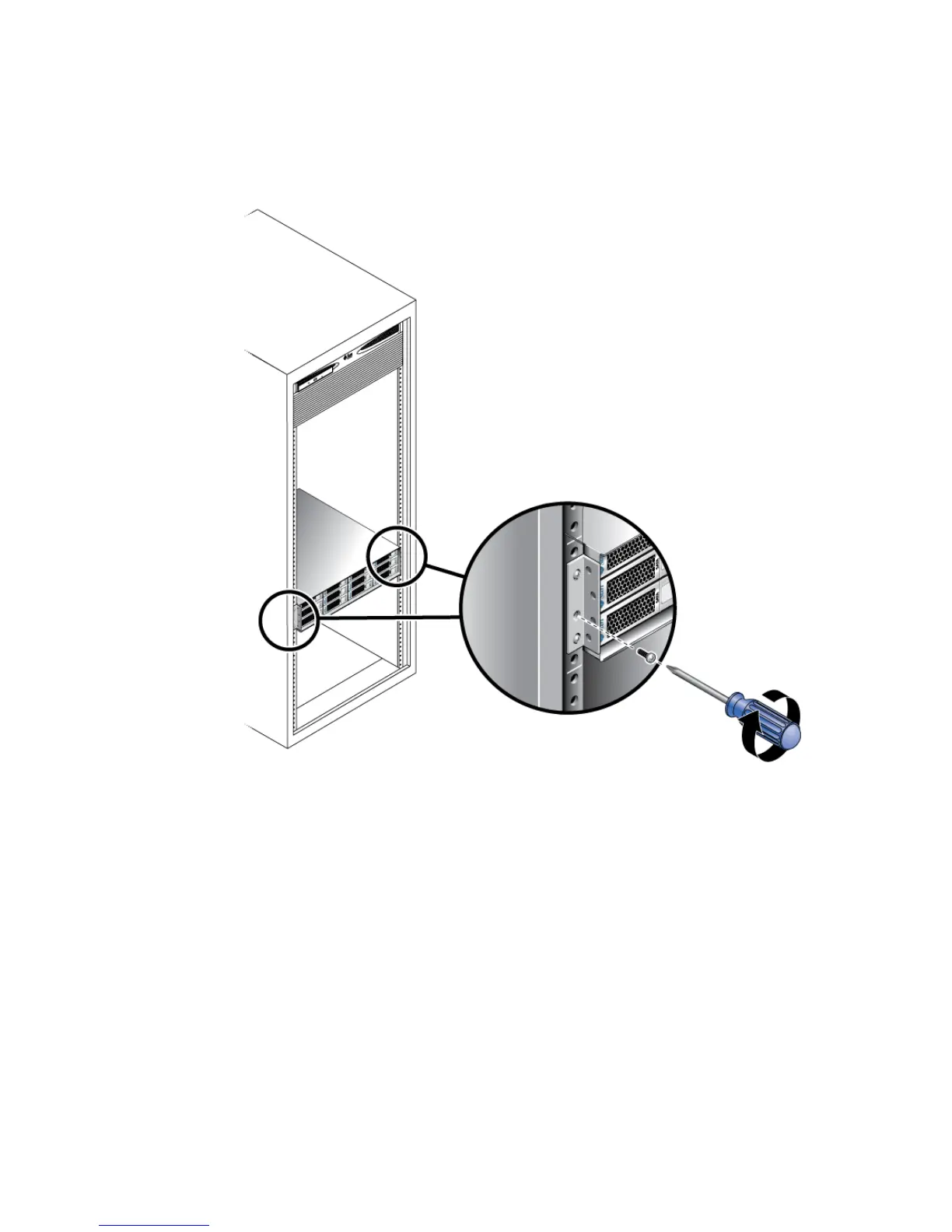

FIGURE 2-15 Securing the Tray to the Front of a Sun Rack 900/1000 Cabinet
4. Replace the end caps (bezels) that cover the mounting flanges on the front of
the array tray.
On each front mounting flange, there is a small tab over which the end caps fit.
The end caps have a slot on top for this tab.
a. Place the end cap over the tab so the tab can go into the slot.
b. Snap the bottom of the end cap into place.
