64 Sun StorageTek 2500 Series Array Hardware Installation Guide • September 2009

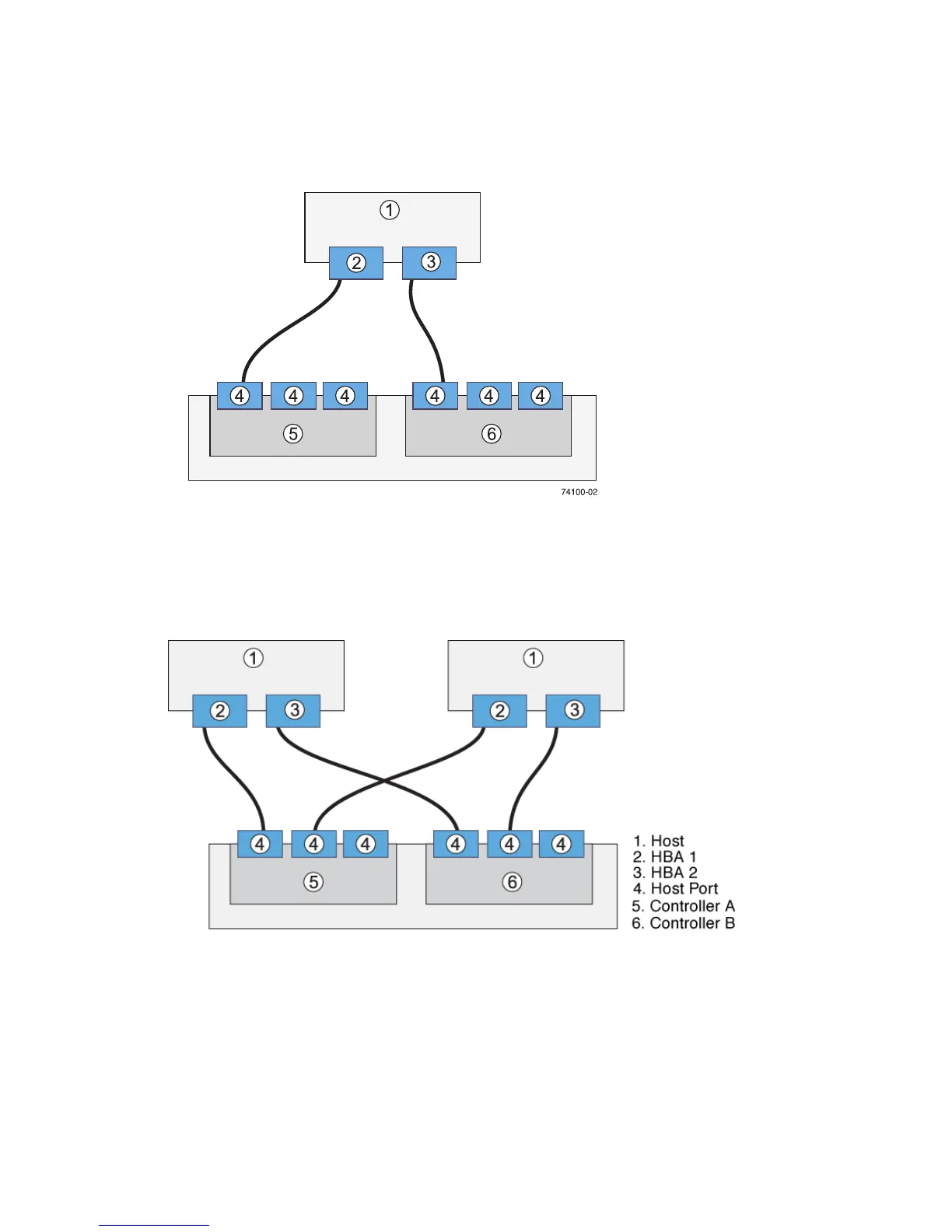

FIGURE 5-1 Direct Connection From a Single Host With Dual HBAs
FIGURE 5-2 shows an example of direct host connections from two data hosts, each
with dual HBAs.
FIGURE 5-2 Direct Connections from Two Data Hosts with Dual HBAs.
FIGURE 5-3 shows an example of direct host connections from three data hosts, each
with dual HBAs.
1. Host
2. HBA 1
3. HBA 2
4. Host Connectors on the
5. Controller A
6. Controller B
Controllers
