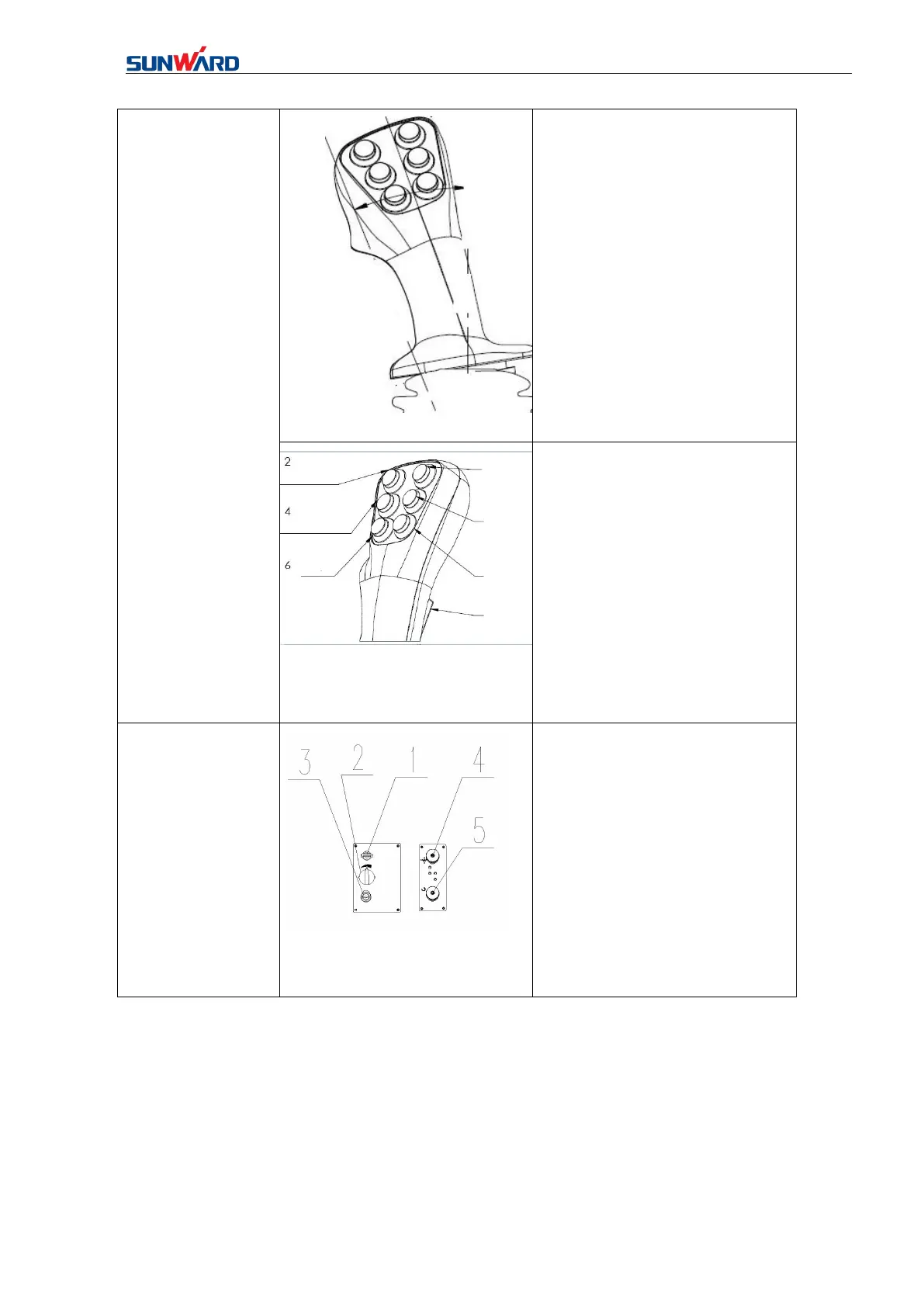

Right Lever
(Prince)
Front: Rotary head lower
Rear: Rotary head lift
Left: Rotary head rotate clockwise
Right:
Rotary head rotate anticlockwise
Left front:
Rotary head lower+ rotate clockwise
Right rear:
Rotary head lift+rotate anticlockwise
1-Left front lock switch;
2-Drill/Rod Discharging/Connection
Switch;
3-Standby switch;
4- Air switch;
5- Standby switch;
6- Claw floating switch;
7- Fast feed & lift switch;
Right front
operation switch
1-Ignition switch
2- Throttle rotary knob
3-Cigar lighter
4-Feed pressure regulation valve
5-Swing pressure regulation
valve
