SWDE200B Operation & Maintenance Manual
41

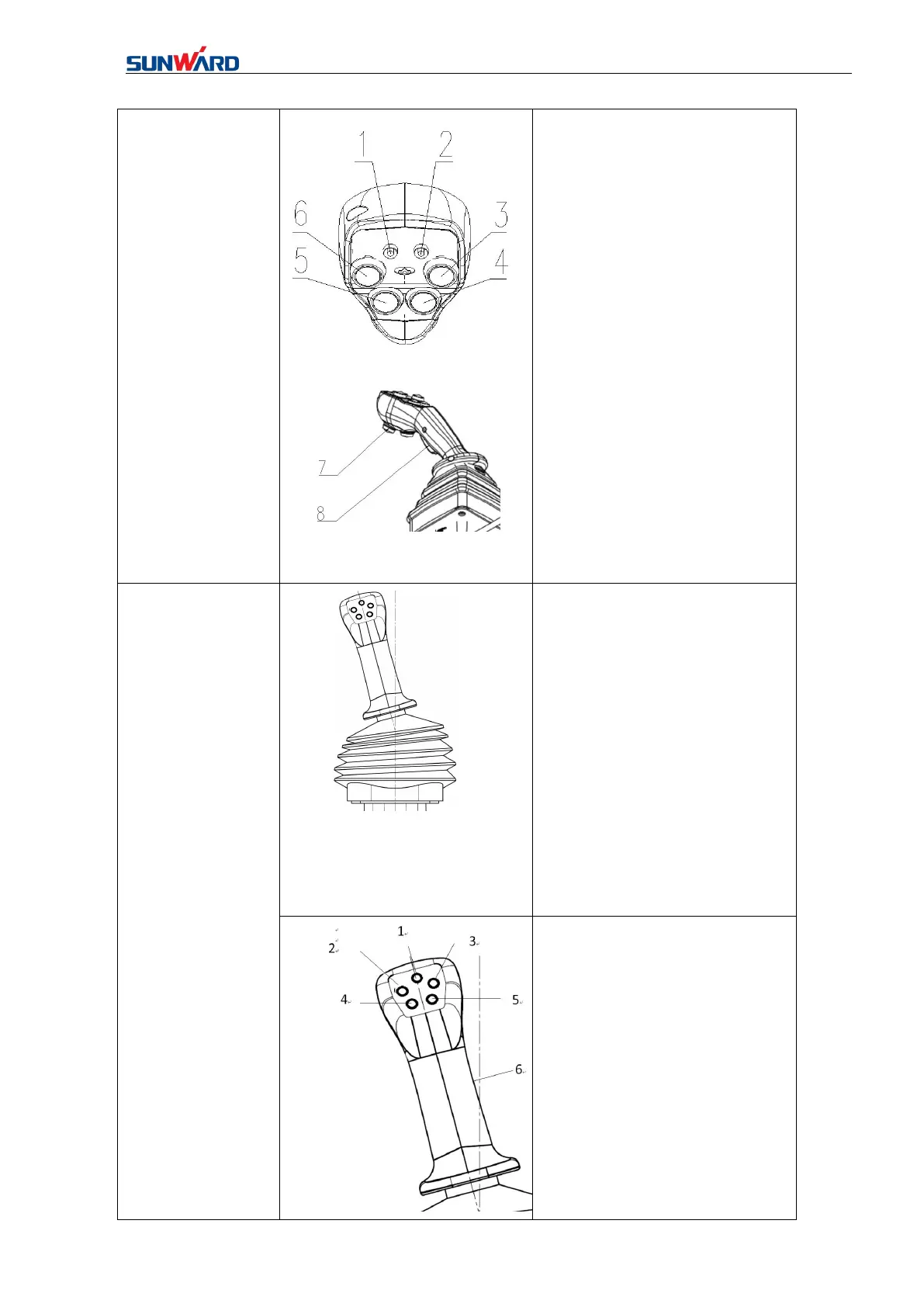

1-Indicator Light-
Corresponding button 6
(Light ON: Drilling mode）
2-Indicator Light-
Corresponding button 3
( Light ON：Locked）
3-Left Front Lock Switch
4-Standby；
5-Air Switch;
6-Drill/Rod Discharging/Connection
Switch;
7-Claw Floating Switch;
8-Fast Feed & Lift Switch
Right Lever
(Saline)
Front: Rotary head lower
Rear: Rotary head lift
Left: Rotary head rotate clockwise
Right:
Rotary head rotate anticlockwise
Left front:
Rotary head lower+ rotate clockwise
Right rear:
Rotary head lift+rotate anticlockwise
1-Drill/Rod Discharging/Connection
Switch;
2- Air Switch;
3-Standby
4- Claw Floating Switch;
5-Standby;
6- Fast Feed & Lift Switch
