SWDE200B Operation & Maintenance Manual
40

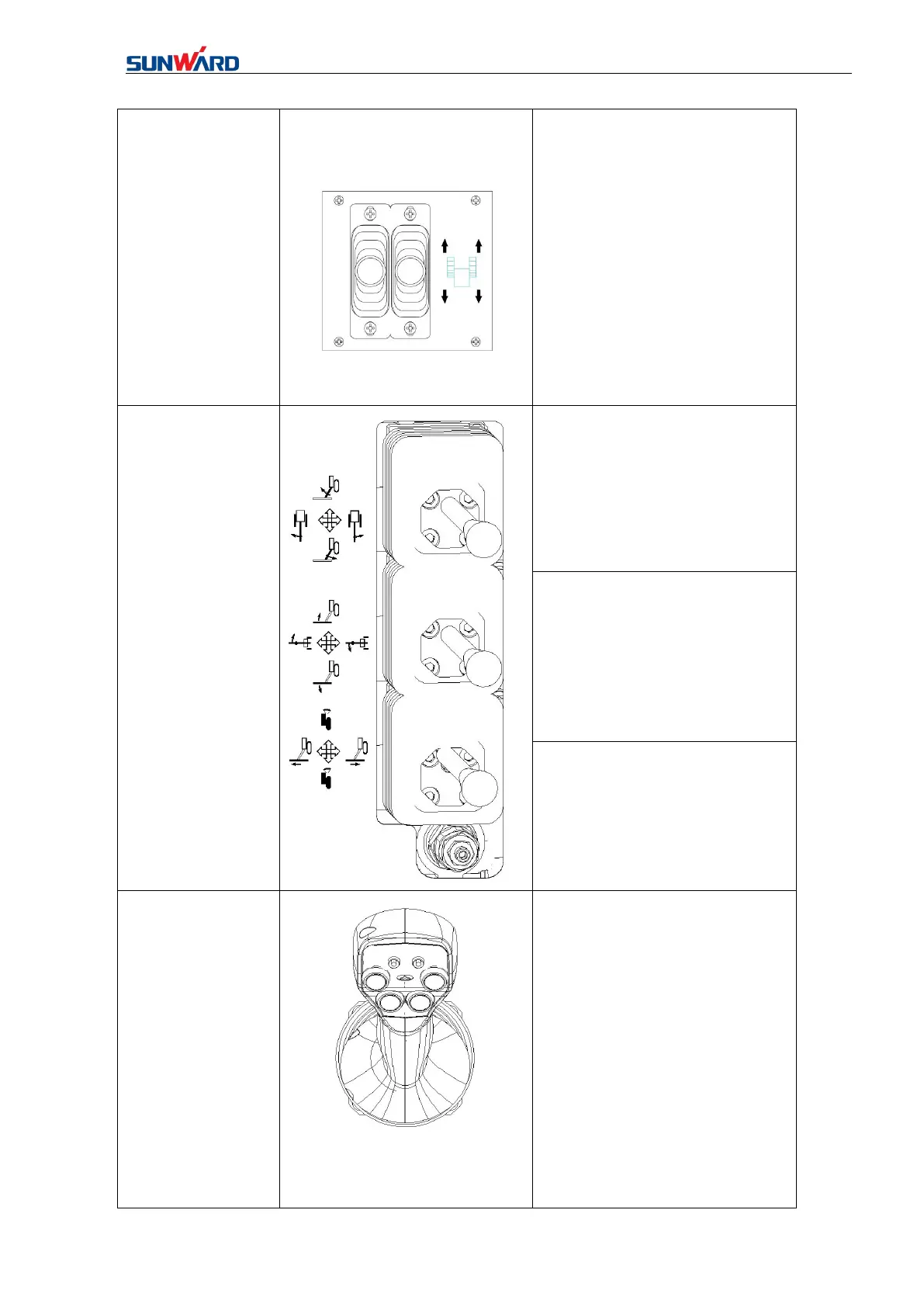

Travel Lever
Left Front:
Left crawler move forward
Left Rear:
Left crawler move rearward
Right Front:
Right crawler move forward
Right Rear:
Right crawler move rearward
Luffing Lever
Front: Drill boom lower
Rear: Drill boom rise
Left: Drill boom swing leftward
Right: Drill boom swing righward
Front: Drilling frame tilt forward
Rear: Drilling frame tilt rearward
Left: Drilling frame rotate clockwise
Right: Drilling frame rotate
anticlockwise
Front: Machine body tilt forward
Rear: Machine body tilt rearward
Left: Extension lower
Right: Extension rise
Right Lever
(Walvoil)
Front: Rotary head lower
Rear: Rotary head lift
Left: Rotary head rotate clockwise
Right:Rotary head rotate
anticlockwise
Left front:
Rotary head lower+ rotate clockwise
Right rear:
Rotary head lift+rotate anticlockwise
