12. Cooling System
12-10

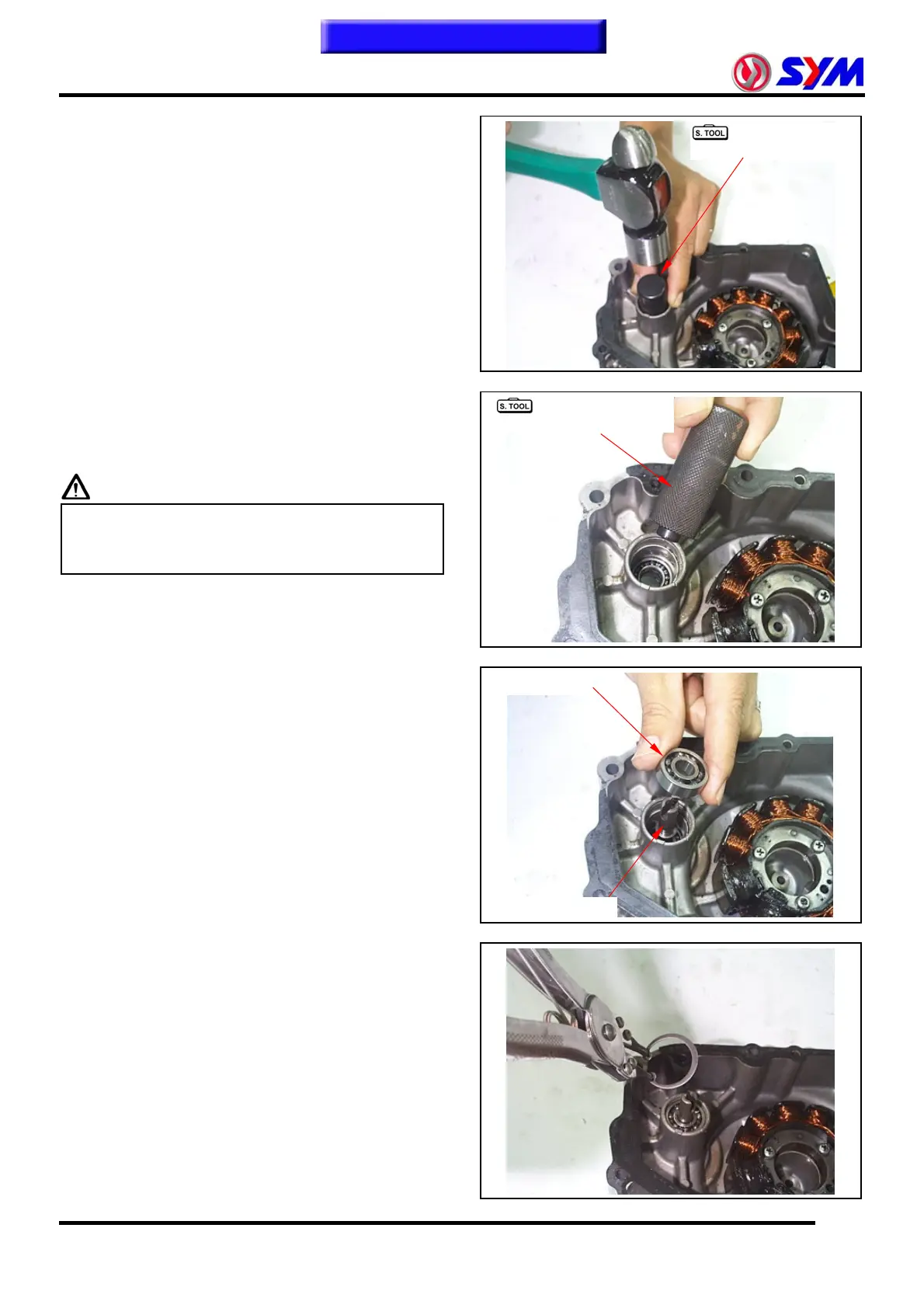

Install the new inner seal onto the right crankcase.
Special tools:
Water pump oil seal driver (inner)
Install a new outside bearing to the right
crankcase cover.
Special tools:
Water pump bearing driver (6901)
Caution
y Do not reuse old bearing. It must be
replaced with a new one once it has been
removed.
Mount the water pump shaft and the inner bearing
to the right crankcase cover.
Install the cir clip to hold the inner bearing.
Inner bearing
Water pump shaft
To this chapter contents
Water pump oil seal
driver
inner
Water pump bearing
driver
6901
