3. Lubrication System
3-6

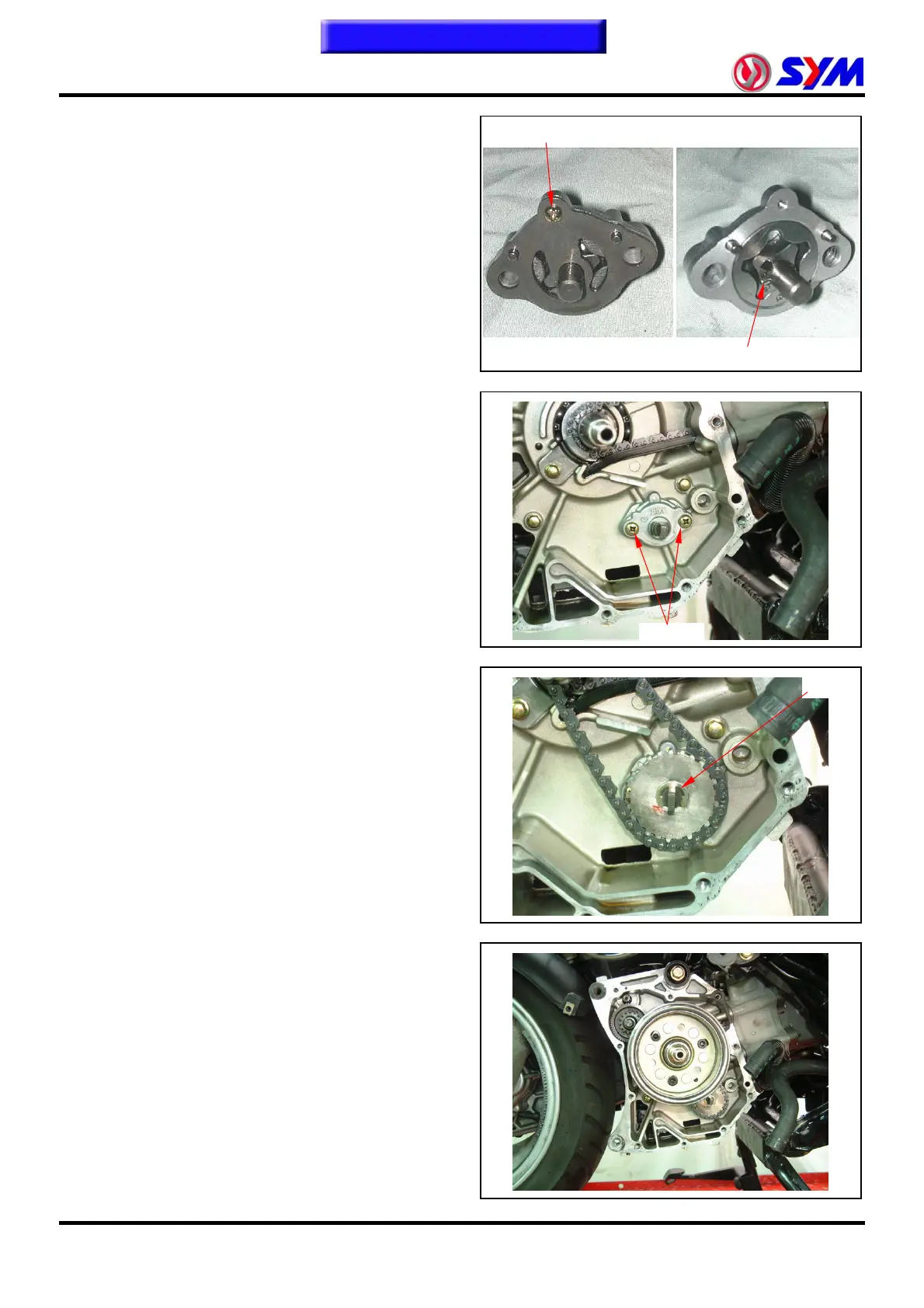

Tighten the oil pump screw.
Oil Pump Installation
Install the oil pump, and then tighten screws.
Torque value：0.1~0.3kgf-m
Make sure that oil pump shaft can be rotated
freely.
Install oil pump drive chain and sprocket, and then
install cir clip onto oil pump shaft.
Install starting gear and generator.
(Refer to chapter 10)
To this chapter contents
1 screw
Roller
2 screws
Clip
