4. Fuel Injection System
4-23
Numerical voltage changes that
the situation.

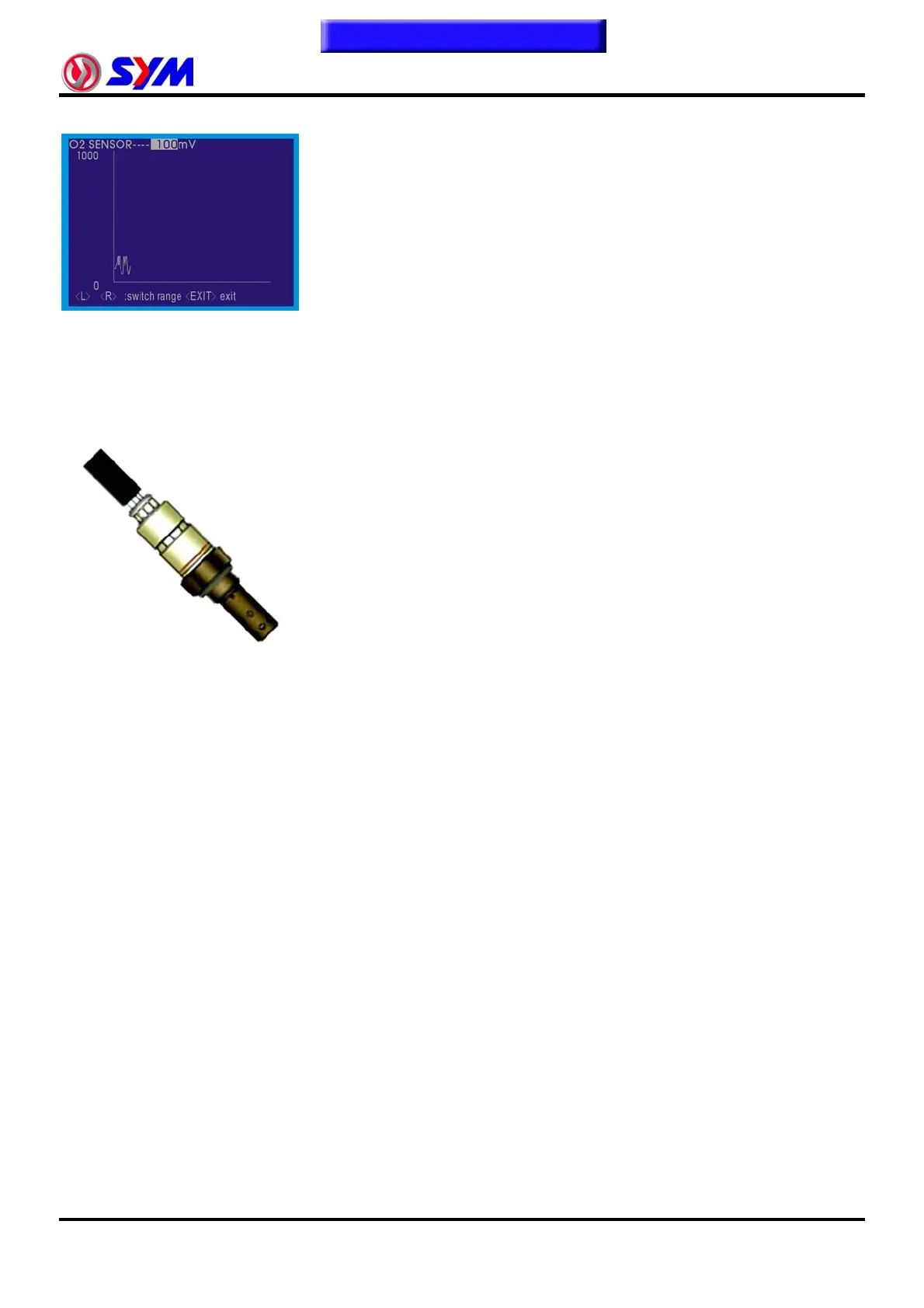

1. Used the diagnosis tool to confirm of O
2
sensor work situations:
● Connected the "diagnosis tool" to diagnosis coupler and open the
main switch to start the engine.
● Engine to be completely warm-up (idling state operation "5 minutes"
above).
● Screen will switch to the diagnosis tool of "DATA STREAM 01/01"
screen, select " O
2
Sensor" project, and switches to a wave of
images, turn the throttle engine speed to about 4500 rpm,
Observation O
2
Sensor actuator circumstances.
● Observation O
2
Sensor voltage values that the situation changes.
Detection judge:
● Working voltage value: above 10V
● Resistance value: 6.7~10.5Ω
● O
2
Sensor amendment in the voltage value of between 100 ~ 900 mV
beating; representatives pollution closed-loop control system to normal,
if contrary to maintain a fixed value for abnormalities.
Treatment of abnormal phenomena:
● O
2
sensor damage, heater damaged or couplers to poor contact.
● Check whether the abnormal wire harness lines.
● O
2
Sensor anomaly, the proposed replacement of the O
2
Sensor，and
measurements again.
