Procedure 6 –The Fan Assembly
Before beginning this procedure, turn the printer off and disconnect the power cable.
Removing
STEP 1. Remove the Right End Cover (see Procedure 3).
STEP 2. Remove the Engine Controller CBA (see Procedure 4).
STEP 3. Remove the Personality Module CBA and its Enclosure (see Procedure 5).
STEP 4. Remove the three screws securing the Fan Assembly to the base of the printer. You can now
lift the fan out of the printer.

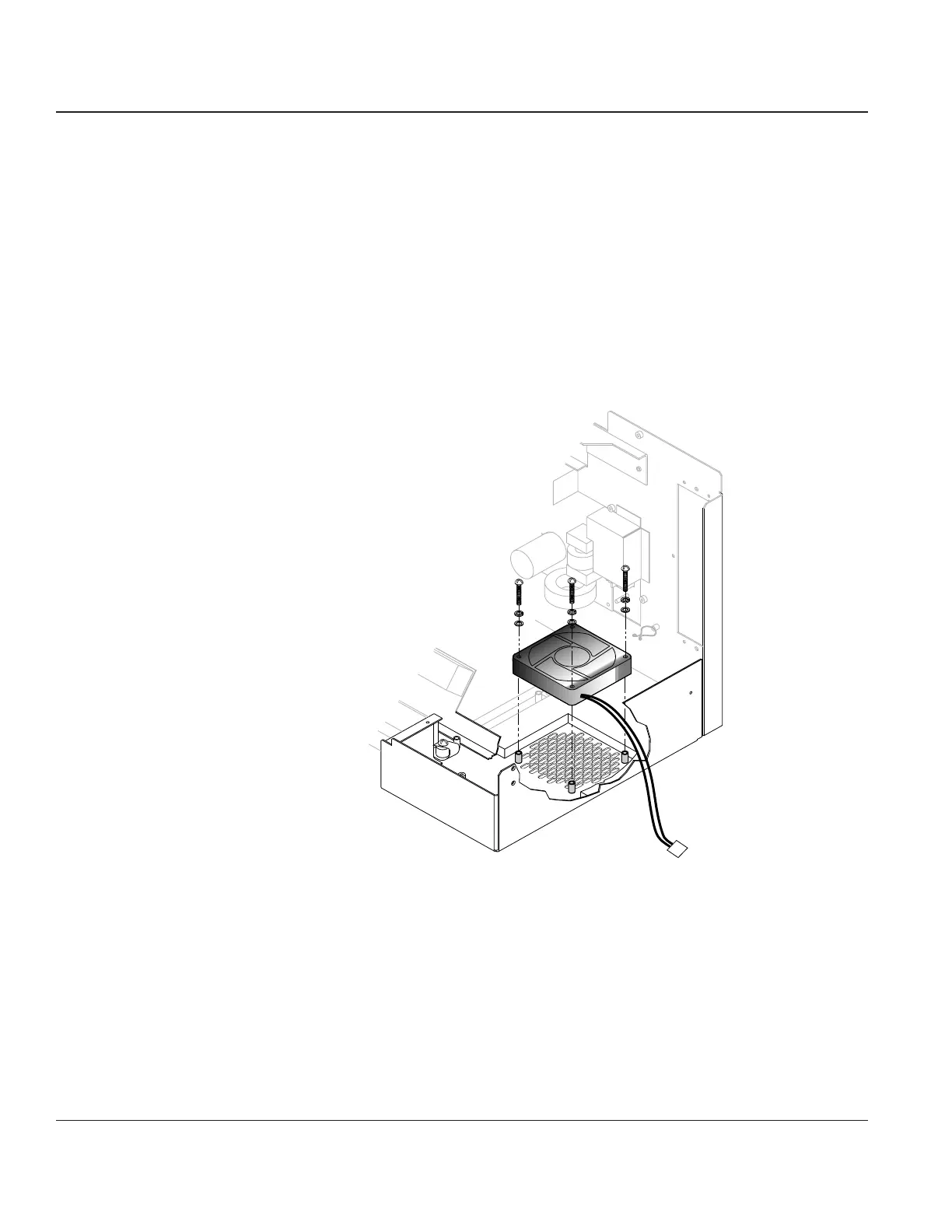

Figure 4–10. Removing Fan Assembly.
Reinstalling
To reinstall the Fan Assembly, reverse the sequence of the above steps.
