GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-5
Copyright © 2013, Diversey Inc.
05.10.14 handle - switch lever - 350B_V1.00.fm
5.1 Handle
5.1.4 Mounting of switch lever

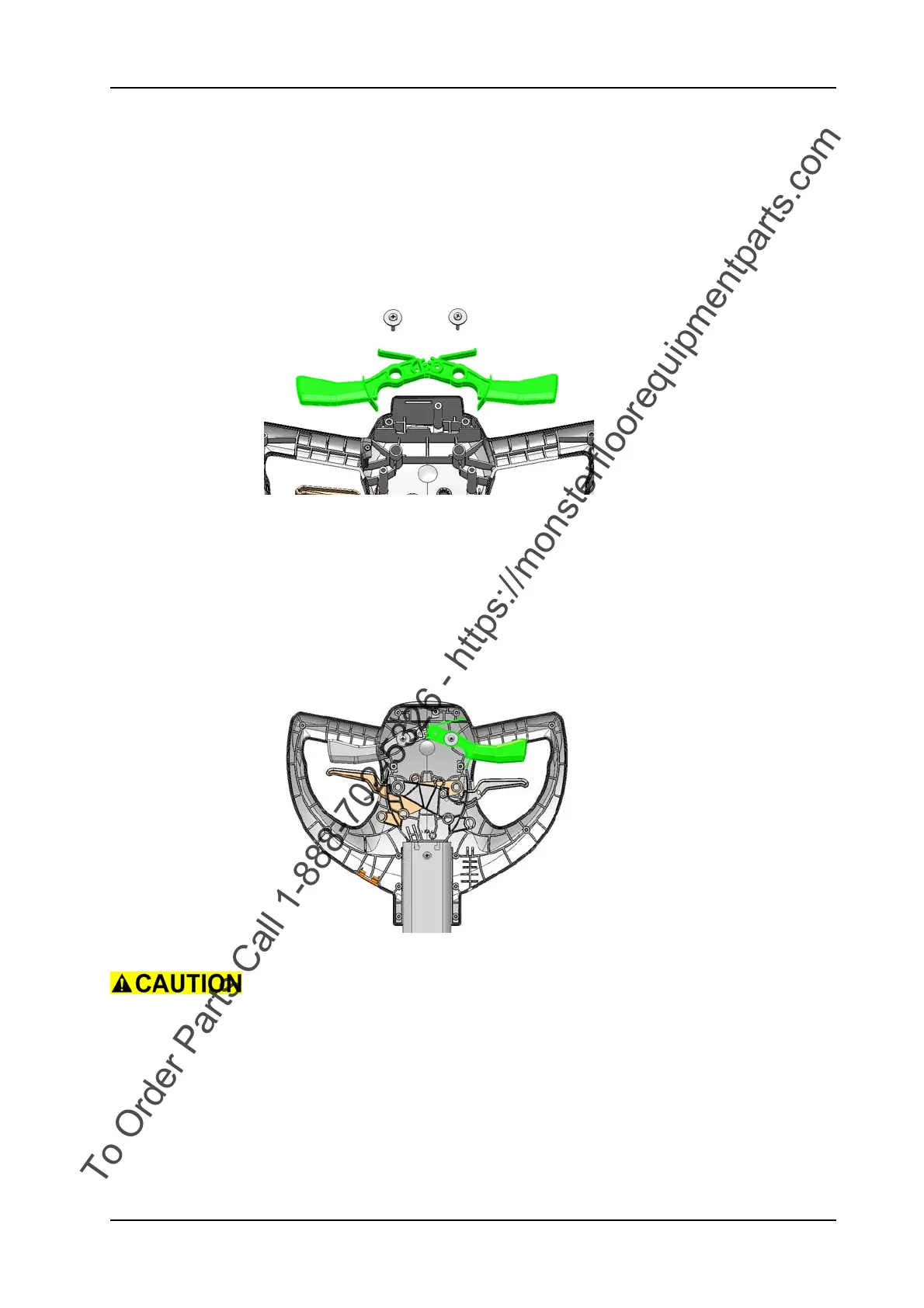

Picture 7: Switch lever screws
• Mount switch levers onto the handle.
Adjustment
Ensure that the gear teeth of the switch levers are correctly
positioned. The switch levers have to be horizontally in one line.
• Mount the screws for the left and right switch lever.
Picture 8: Switch lever
Ensure that the RH switch lever (for wiping blade) has the bolt with
magnet (01/118) mounted.
Ensure that the switch levers move easily. Do not tighten the fixation
screws to hard.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
