5.5 Tank cover and tank
5.5.2 Mounting of clear water tank assembly

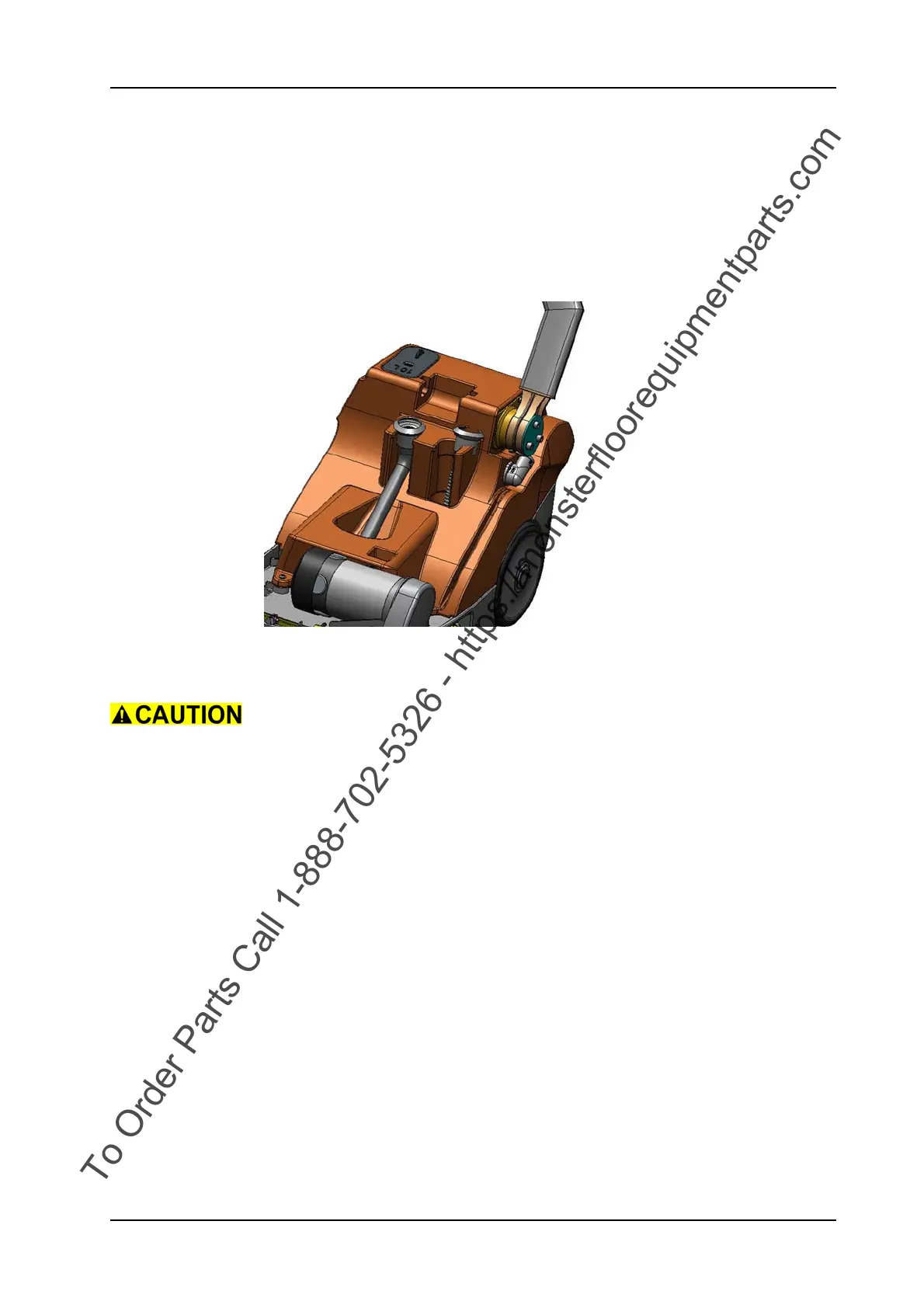

Picture 51: Clear water tank assembly
• Position clear water tank on the chassis.
Thread in the suction hose (04/102) and angle hose (07/102)
correctly.
Ensure that the clear water tank fits nicely onto the chassis.
• Tighten screw with 13mm for spanners.
• Mount the 4 screws for clear water tank.
• Position battery cover.
• Mount the 4 screws for battery cover.
• Assemble threaded adaptor onto the suction hose.
• Assemble threaded adaptor onto the angle hose.
• Position the recovery tank.
• Position tank cover complete.
