5.2 Guide bar
5.2.5 Mounting of bowden cable handle adjustment old setup

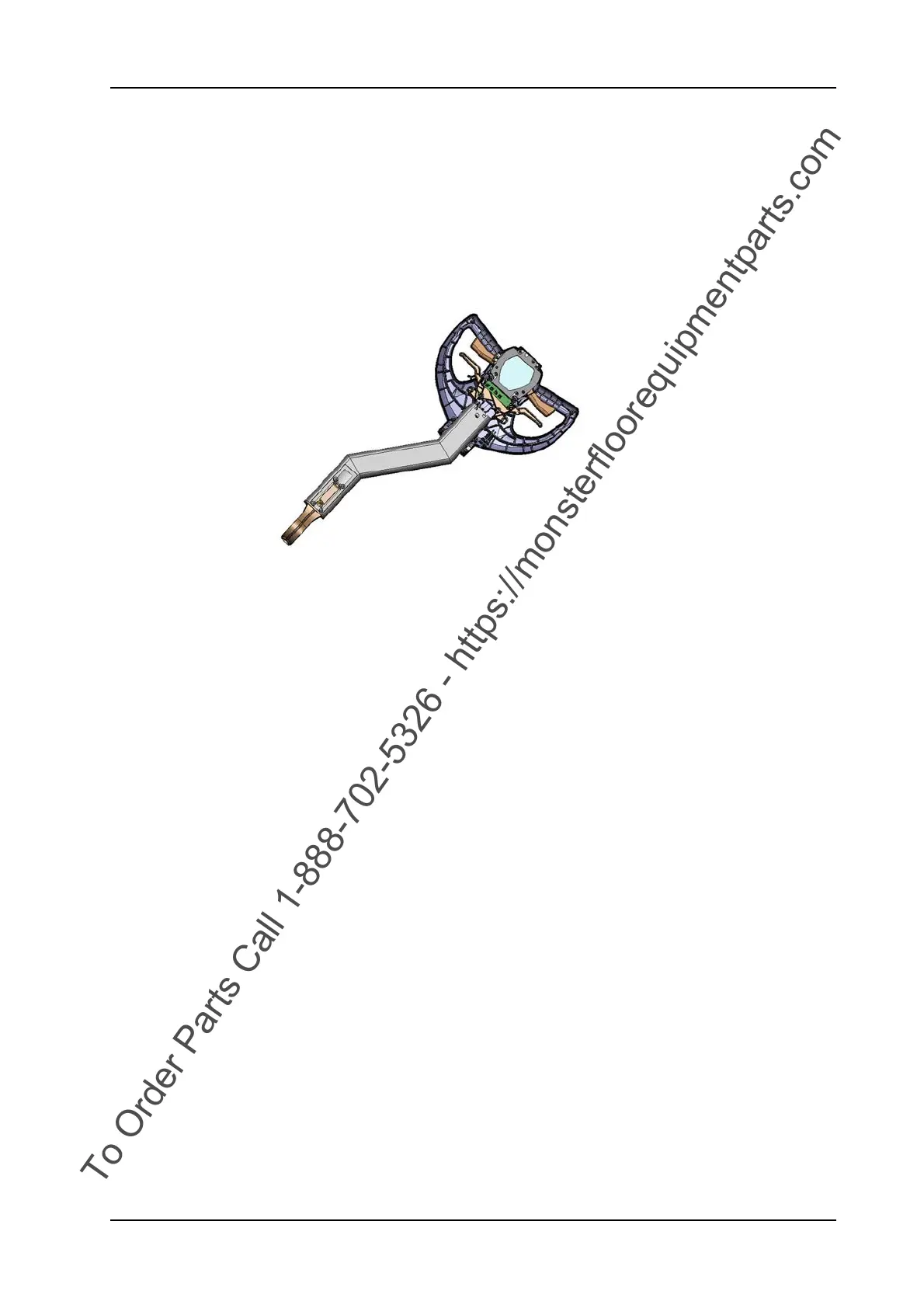

Picture 26: Guide bar
• Thread in the bowden cable.
Remarks
The adjustment side of the bowden cable is at the articulation side.
• Position end bolt of bowden cable on the handle adjustment
lever.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
• Position the end bolt of the bowden cable at the lock (02/110) of
the handle position.
• Position spring downwards to the lock of handle position.
• Position bowden cable into articulation.
• Complete assembling according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE ADJUSTMENT.
