5.6 Vacuum unit
5.6.2 Mounting of vacuum motor
• Position seals, guiding ring and cover correctly.
• Position the angle hose.
Remarks
The sequence of the seals, guiding ring and cover is described in the
spare parts list.

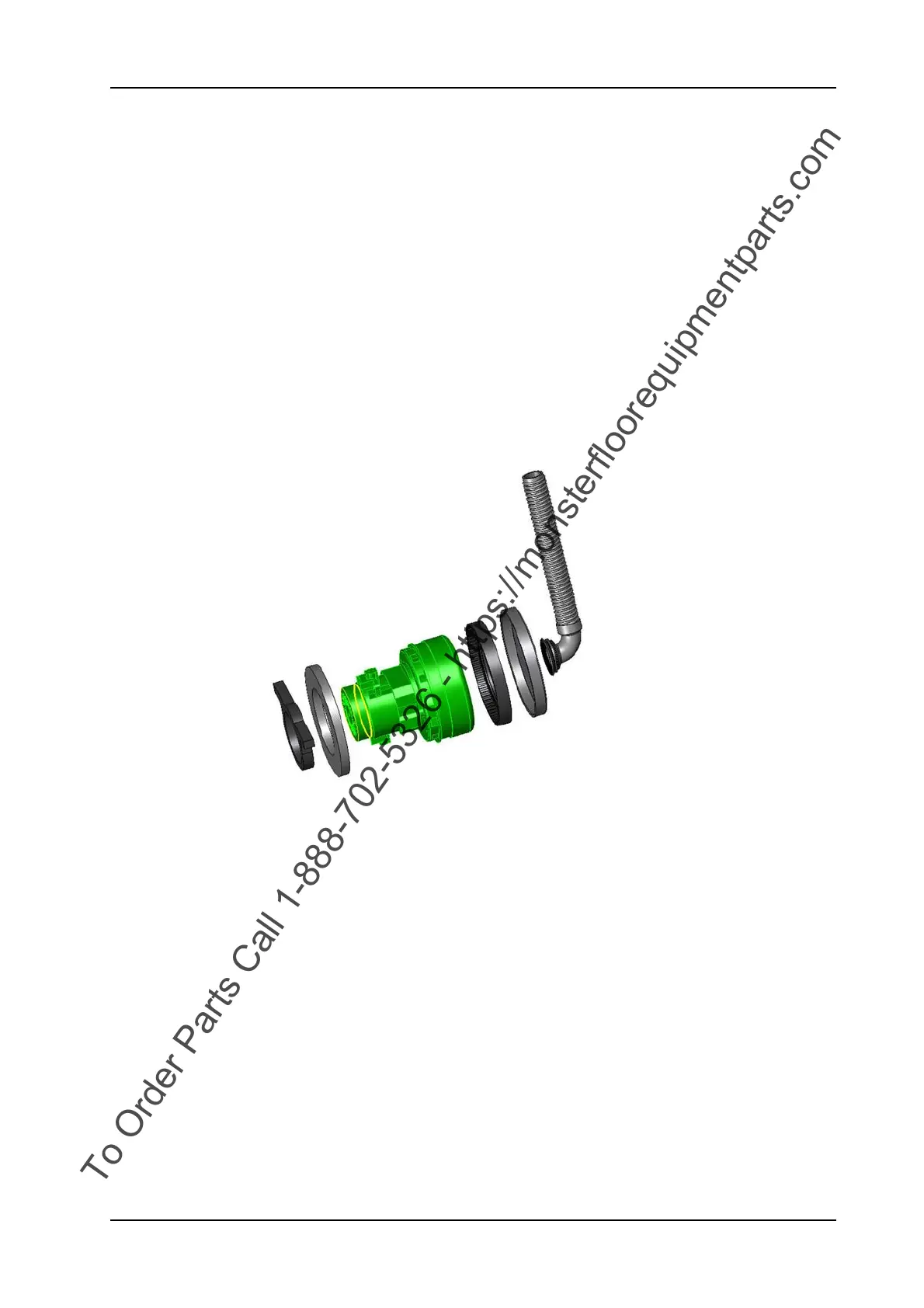

Picture 55: Vacuum motor details
• Connect vacuum motor wires to connection block.
Remarks
If you removed the charger and connection block, please mount them
again.
• Position the assembled vacuum motor into the chassis.
• Complete assembling according to chapter MOUNTING OF
CLEAR WATER TANK ASSEMBLY.
