Taski swingo 350B - Mounting of Bowden Cable Wiping Blade

GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-33
Copyright © 2013, Diversey Inc.
05.44.14 base - bowden cable wiping blade - 350B_350E_V1.00.fm
5.4 Base
5.4.5 Mounting of bowden cable wiping blade

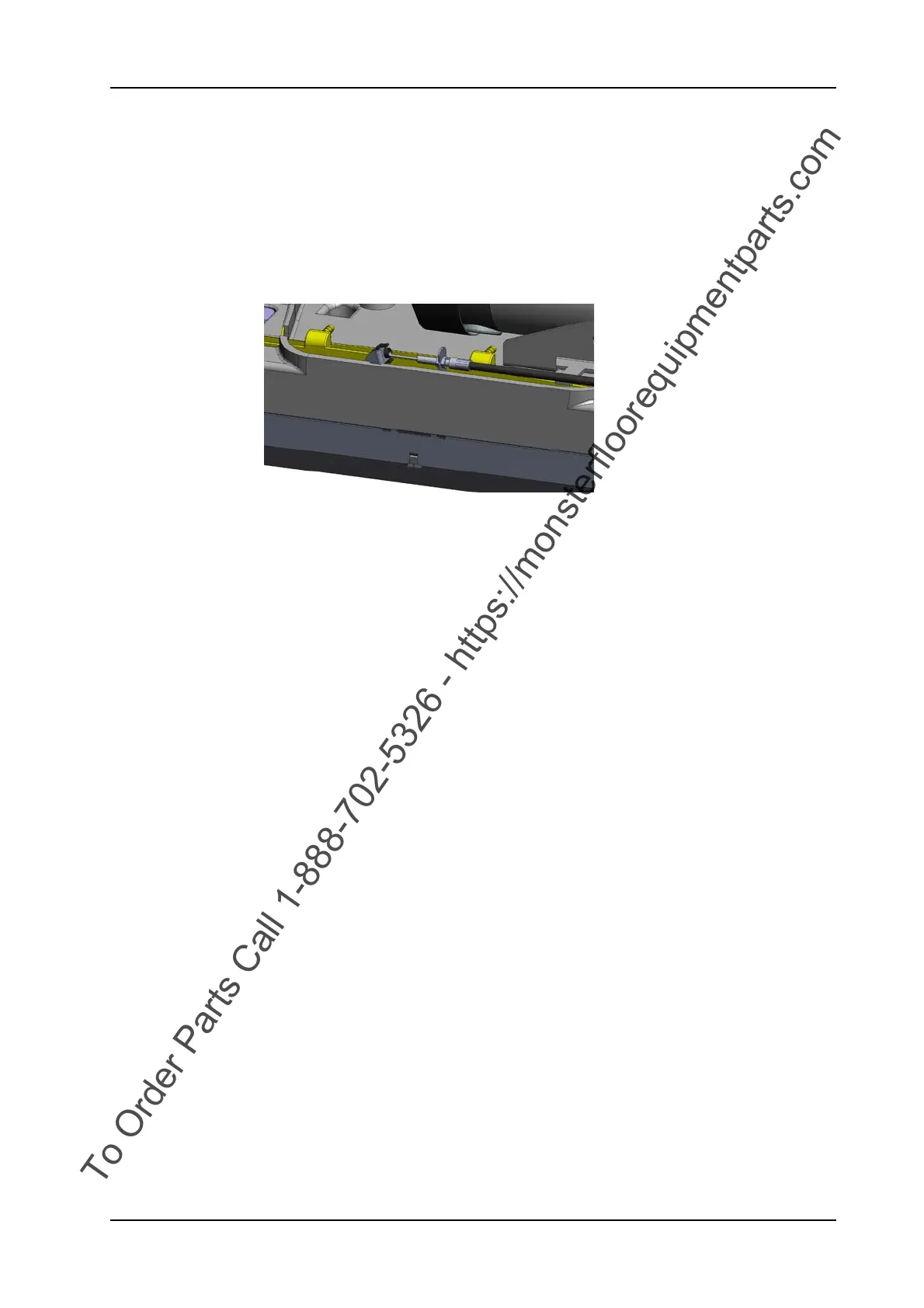

Picture 48: Bowden cable wiping blade
• Thread in the bowden cable.
Remarks
The adjustment side of the bowden cable is at chassis side.
• Position end bolt of bowden cable on the wiping blade lever.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
• Position the end bolt of the bowden cable with the ball socket on
the lever (snap on).
• Complete adjustment according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE ADJUSTMENT.
