GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-27
Copyright © 2013, Diversey Inc.
05.40.19 squeegee - back blade - 350B_350E_V1.00.fm
5.3 Squeegee
5.3.3 Removing of back blade

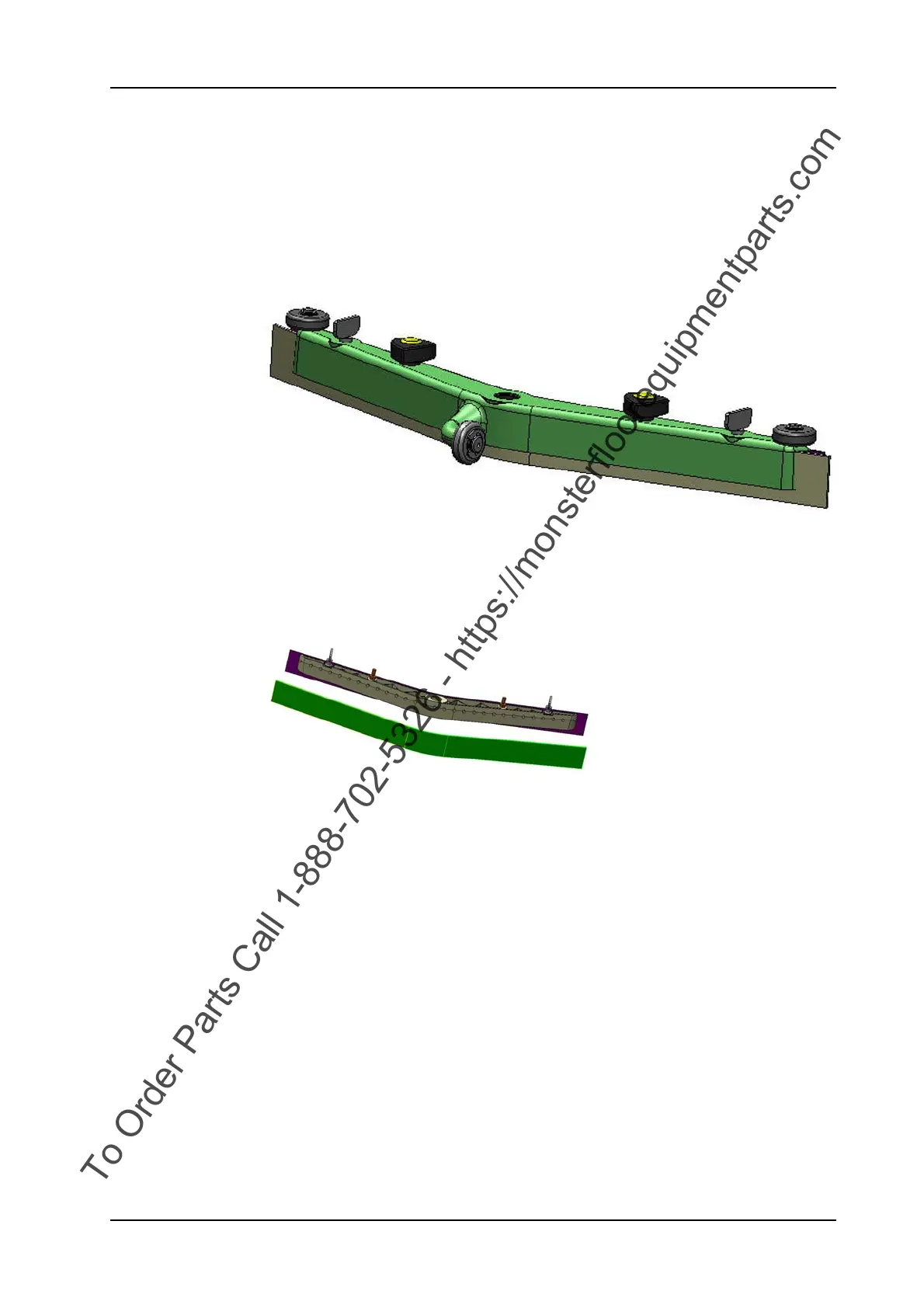

Picture 41: Squeegee back side
• Remove the two handles (03/102).
• Press out the squeegee inlet (03/112).
• Remove the back blade (03/114) by tearing it off of the
squeegee inlet.
Picture 42: Back blade fixation
