Taski swingo 350B - Mounting of Articulation Old Setup

GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-21
Copyright © 2013, Diversey Inc.
05.11.15 guide bar - articulation old setup - 350B_V1.00.fm
5.2 Guide bar
5.2.9 Mounting of articulation old setup

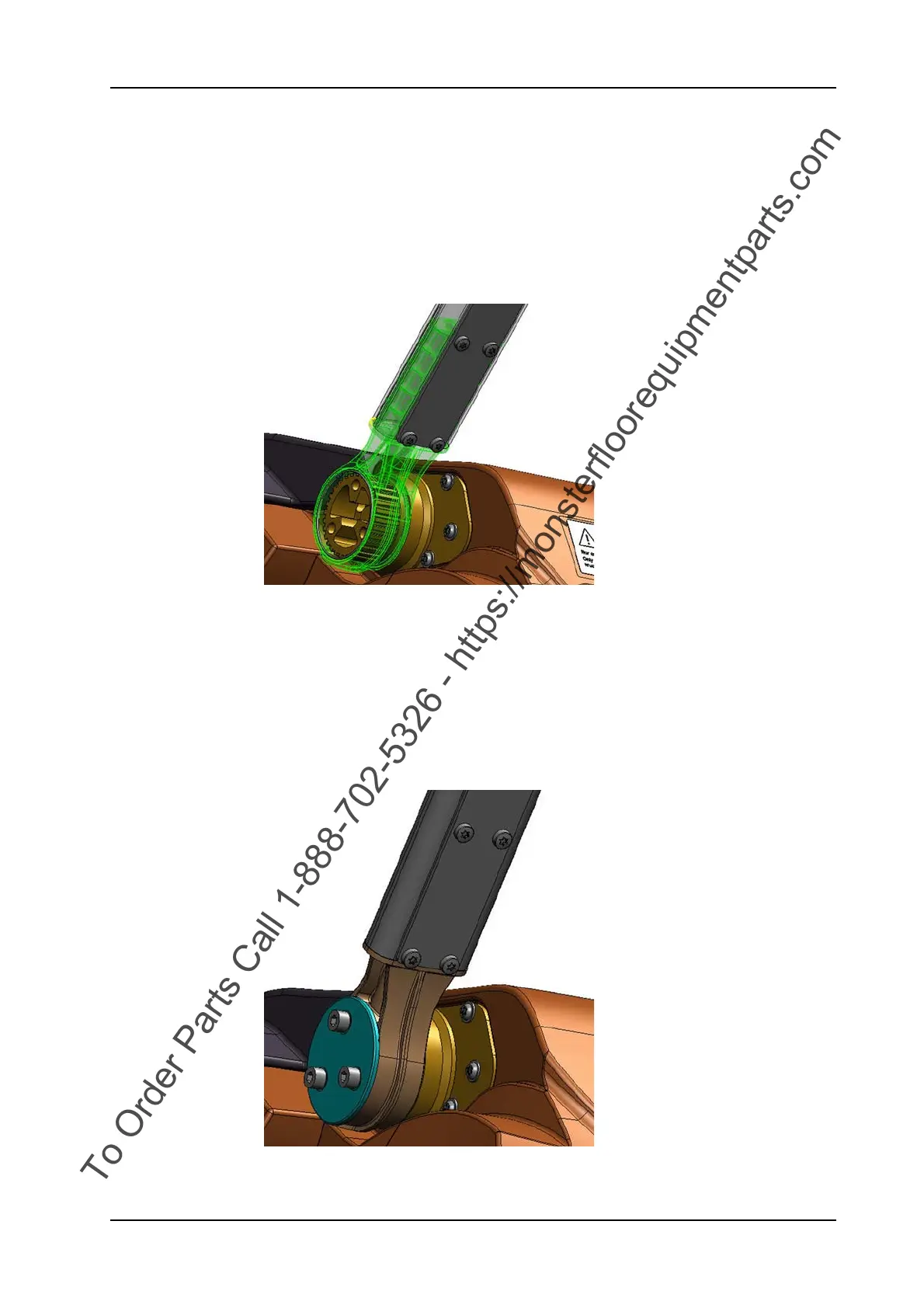

Picture 33: Articulation detail
• Mount lock of handle position into the articulation.
Service
Apply ball bearing grease (02/120) on the lock of handle position (02/
110).
• Mount articulation onto bracket.
Picture 34: Articulation
