GTS Technical Manual
26. March 2013 Edition: V1.10/2013 6-2
Copyright © 2013, Diversey Inc.
06.10.10 system architecture - 350B_455B_V1.00.fm

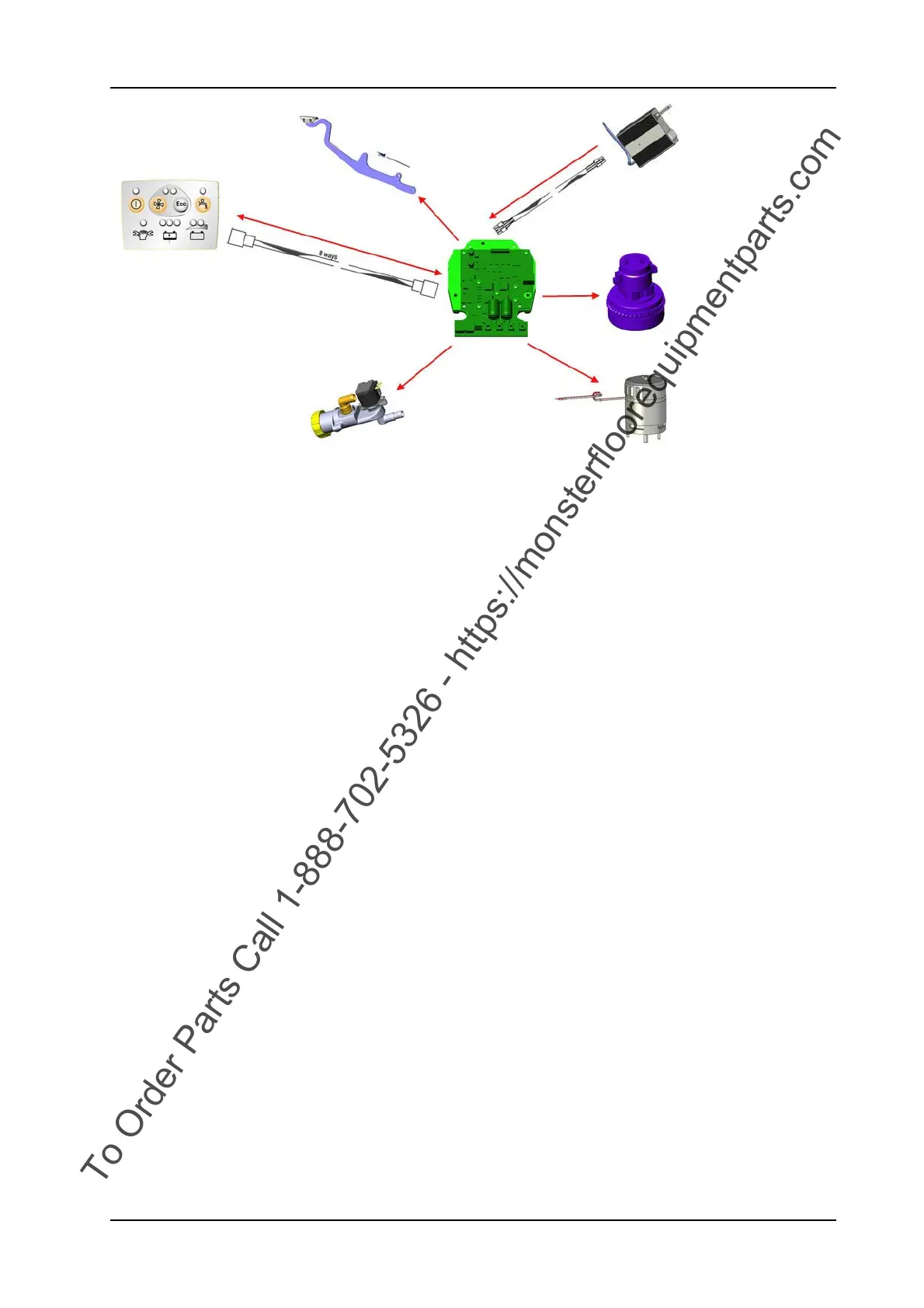

Picture 2: System overview 455B
6.1.3 Start up/Self holding
The machine is switched ON by pressing the ON/OFF button for 3 seconds and feeds the
power electronics with power. The power electronics get power and it enables the proc-
essor to start and go into the self holding. The power electronics stays on as long as:
• It is not switched OFF by the ON/OFF button.
• The switch-off timer does not reach 5 minutes.
• The charger is not connected to main.
• The battery plug is connected to jack housing (350B:05/108,
455B:02/135).
6.1.4 Emergency loop
The machine has a separate emergency loop, which contains following elements:
• Charger (internal switch).
• Start up/Self holding.
