GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-18
Copyright © 2013, Diversey Inc.
05.11.13 guide bar - bowden cable handle new setup - 350B_V1.00.fm
5.2 Guide bar
5.2.7 Mounting of bowden cable handle adjustment new setup

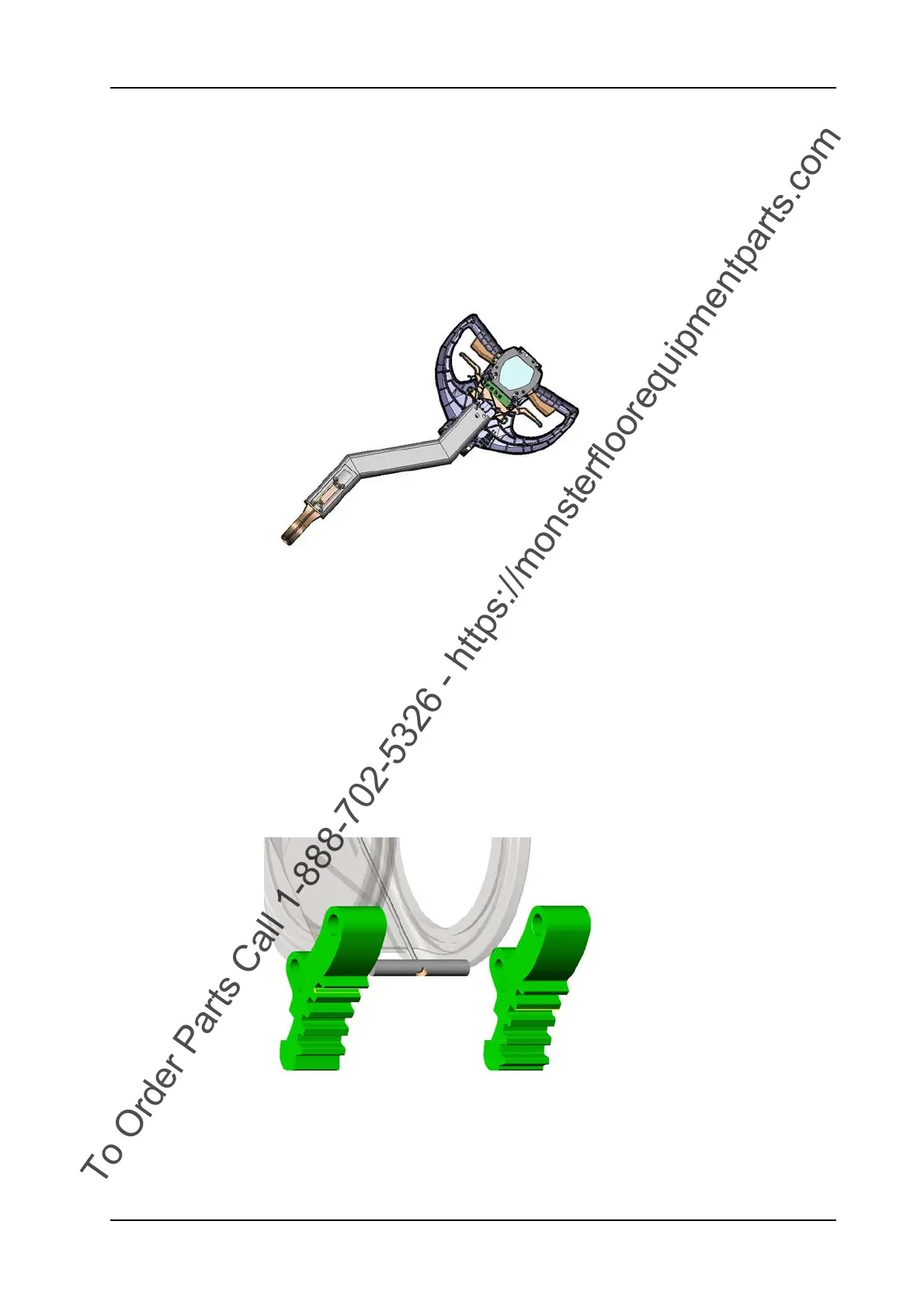

Picture 29: Guide bar
• Thread the bowden cable into the guide bar.
Remarks
The adjustment side of the bowden cable is at the articulation side.
• Position the end bolt of the bowden cable on the handle
adjustment lever.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
• Mount the toothrockers according to chapter MOUNTING OF
TOOTHROCKER.
Picture 30: Toothrocker detail
• Adjust the bowden cable handle and complete assembling
according to ADJUSTING OF BOWDEN CABLE HANDLE.
