GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-15
Copyright © 2013, Diversey Inc.
05.11.12 guide bar - bowden cable handle old setup - 350B_V1.00.fm
5.2 Guide bar
5.2.4 Removing of bowden cable handle adjustment old setup

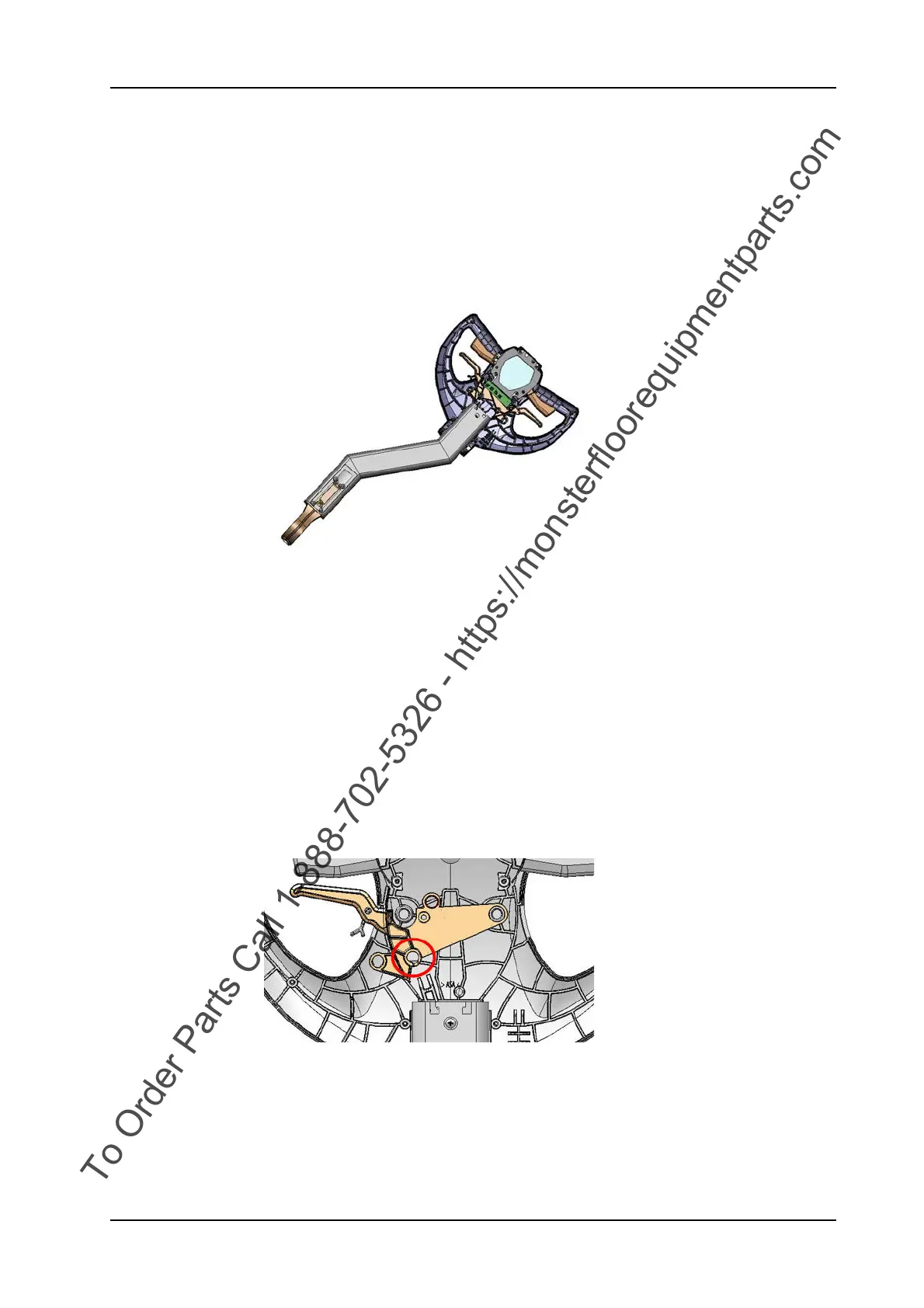

Picture 24: Guide bar
Remove cover (02/103) according to chapter ADJUSTING OF
BOWDEN CABLE HANDLE ADJUSTMENT.
Release the counter nut with a 10mm fork spanner.
Loosen the tension of the bowden cable with a 8mm fork
spanner.
Lift bowden cable out of the articulation (02/113).
Position spring upwards over the adjustment screw.
Remove the end bolt of the bowden cable at the lock (02/110) of
the handle position.
Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
Remove the end bolt of the bowden cable (02/101) on the
handle adjustment lever (01/116).
Picture 25: Guide bar
Thread out the bowden cable.
