GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-39
Copyright © 2013, Diversey Inc.
05.56.10 vacuum unit - vacuum motor - 350B_V1.00.fm
5.6 Vacuum unit
5.6.1 Removing of vacuum motor

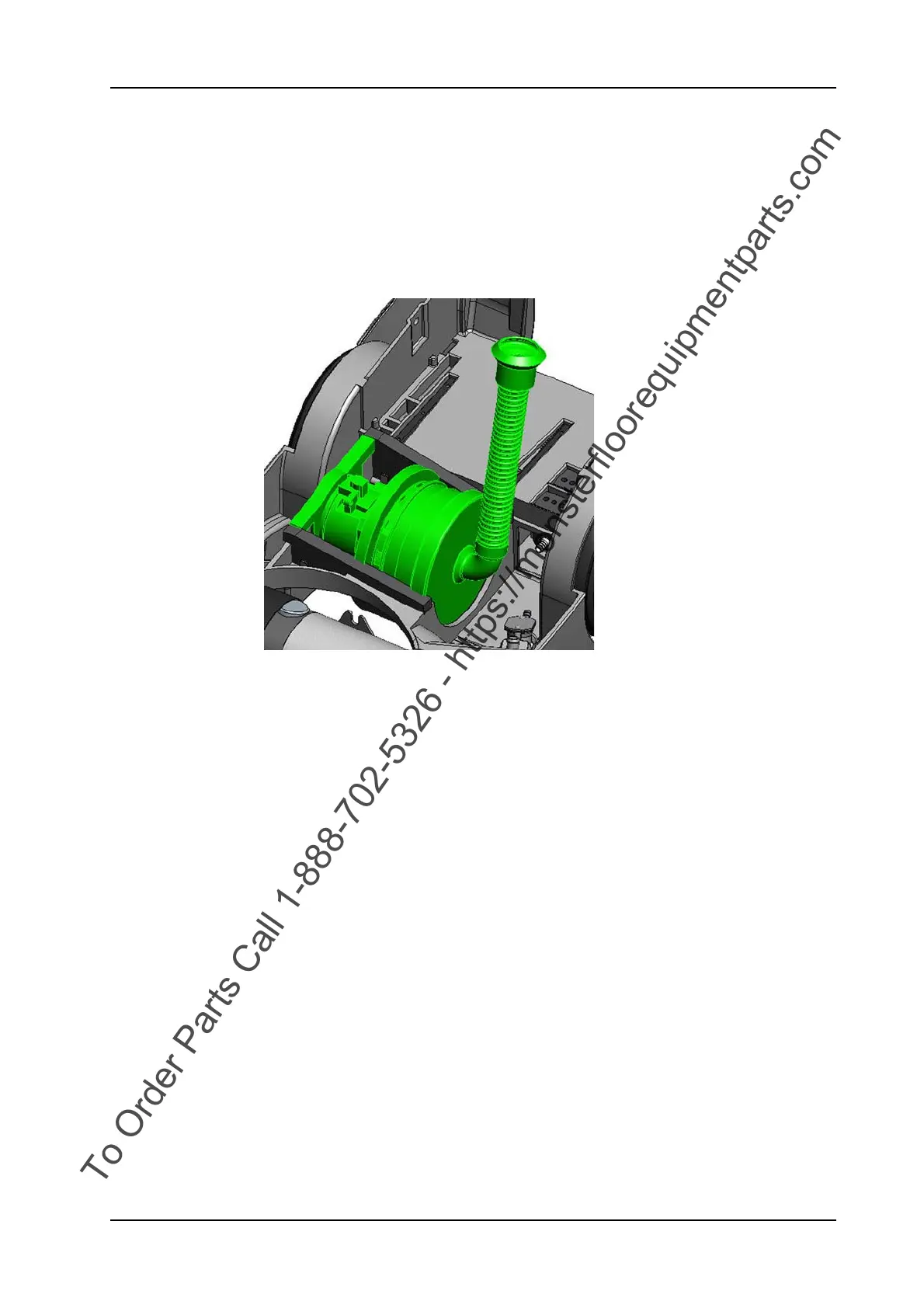

Picture 54: Vacuum motor
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
• Lift the vacuum motor (07/106) with seals out of the chassis.
• Disconnect vacuum motor wires at the connection block (05/
132).
Remarks
To get better access to the wiring you can remove the charger (05/
101). Just pull the charger towards you as it is only mounted on slides
without any fixation screw.
Also you can remove the connection block fixation screw (05/134).
• Remove angle hose (07/102).
• Remove cover, guiding ring and seals.
