GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-32
Copyright © 2013, Diversey Inc.
05.44.14 base - bowden cable wiping blade - 350B_350E_V1.00.fm
5.4 Base
5.4.4 Removing of bowden cable wiping blade

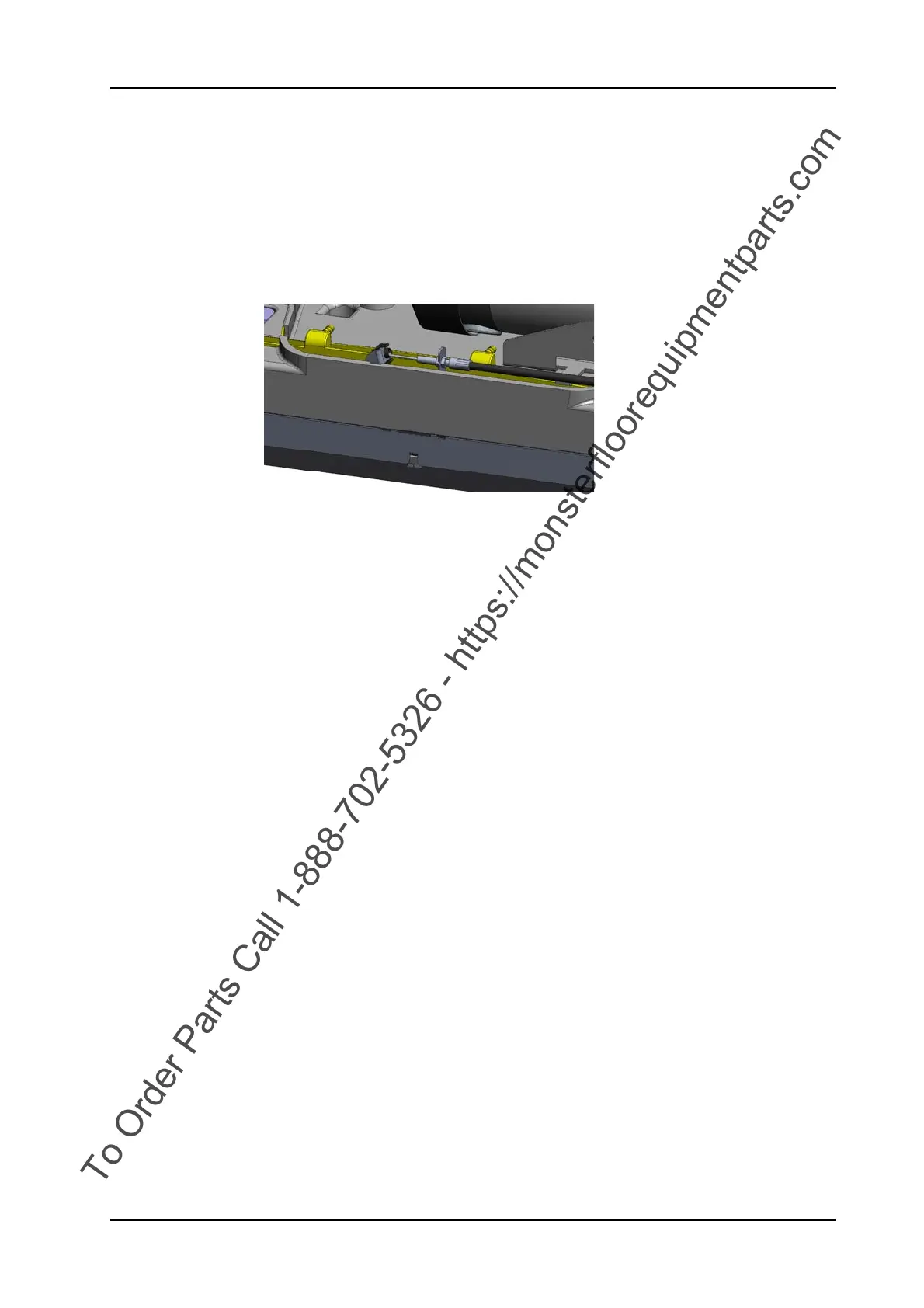

Picture 47: Bowden cable wiping blade
• Remove tank cover complete (06/101).
• Remove recovery tank (06/121).
• Release the counter nut with a 10mm fork spanner.
• Loosen the tension of the bowden cable (01/119) with a 10mm
fork spanner.
• Remove the end bolt of the bowden cable with the ball socket
(05/121) from the lever (05/123) (snap off).
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the end bolt of the bowden cable (01/119) on the wiping
blade lever (01/116).
• Thread out the bowden cable.
