5.7 Brush & Motor
5.7.3 Removing of brush motor

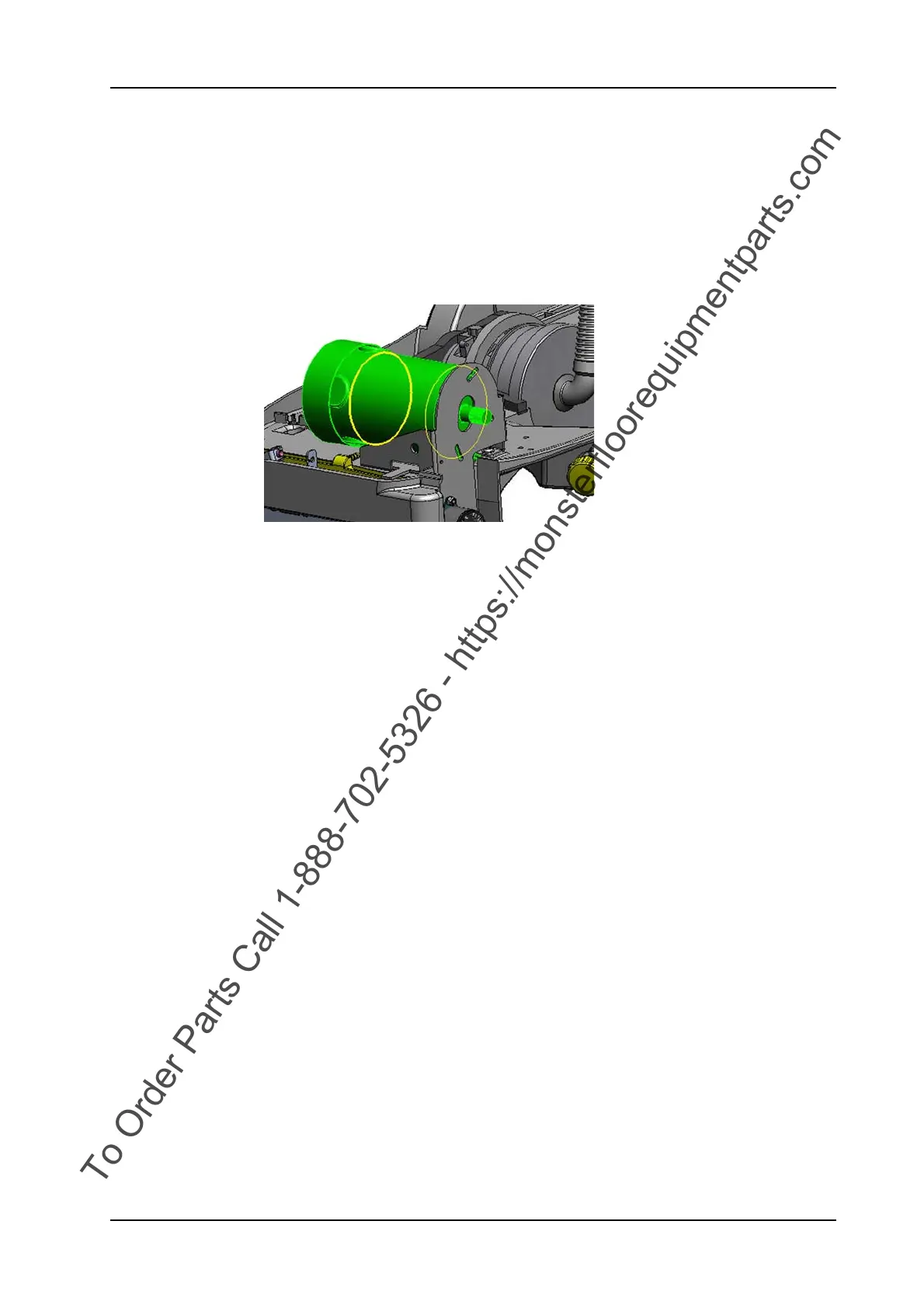

Picture 58: Brush motor
• Remove clear water tank assembly according to chapter
REMOVING OF CLEAR WATER TANK ASSEMBLY.
• Remove brush motor belt according to chapter REMOVING OF
BRUSH MOTOR BELT.
• Remove the 3 fixation screws (08/108) of the brush motor (08/
112).
• Disconnect brush motor wires at connection block (05/132).
Remarks
To get better access to the wiring you can remove the charger (05/
101). Just pull the charger towards you as it is only mounted on slides
without any fixation screw.
Also you can remove the connection block fixation screw (05/134).
• Remove brush motor (08/112).
