5.7 Brush & Motor
5.7.8 Removing of wiping blade

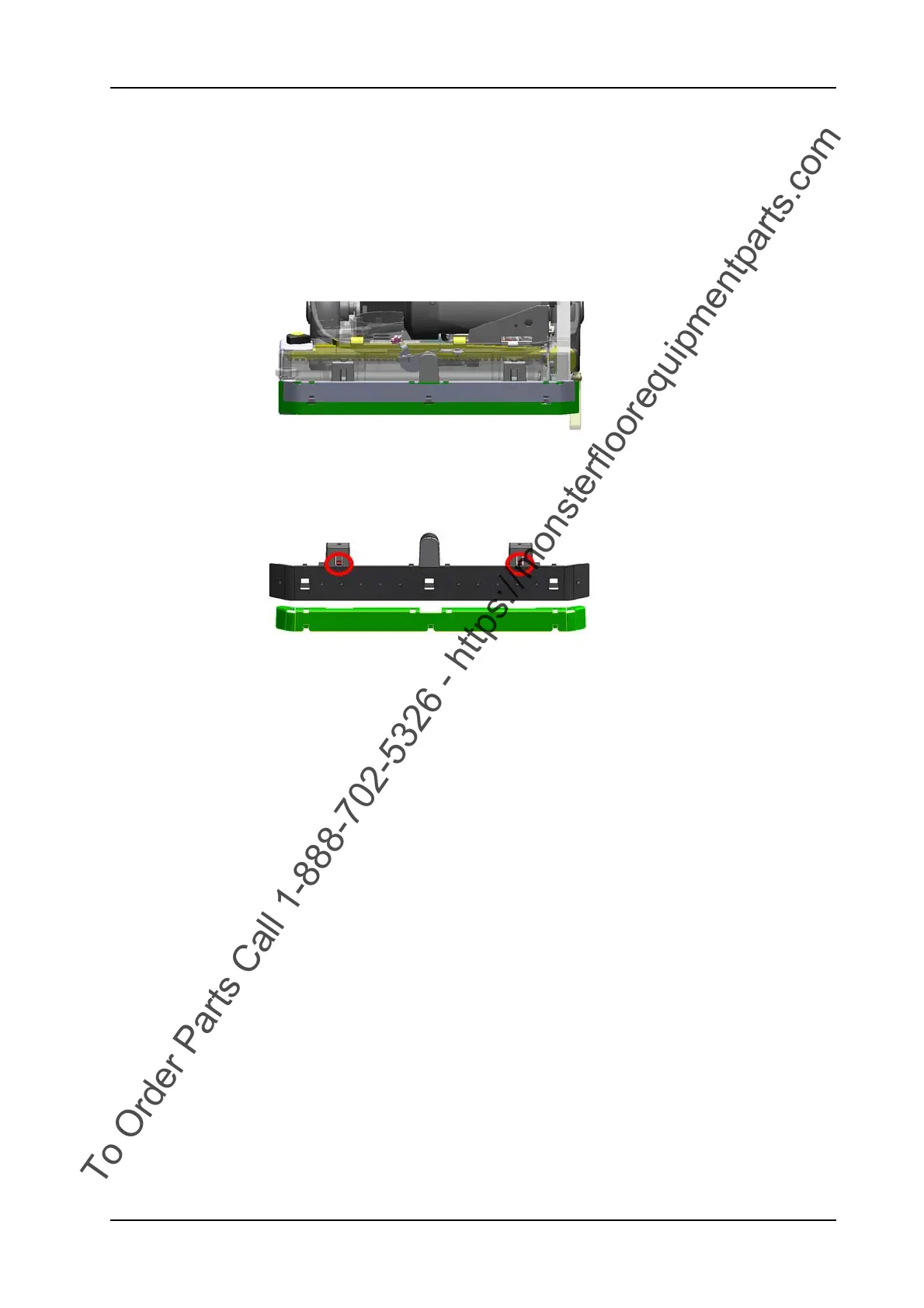

Picture 63: Wiping blade assembly
• Put machine into parking position with lever (05/116).
• Remove cover (08/127) for wiping blade.
Picture 64: Remove wiping blade cover
Remarks
Press the wiping blade with on hand down and release with your other
hand the latches on squeegee holder (08/129) and pull it towards you.
• Remove the wiping blade (08/128) by tearing it off of the
squeegee holder (08/129).
