GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-11
Copyright © 2013, Diversey Inc.
05.11.11 guide bar - toothrocker - 350B_350E_V1.00.fm
5.2 Guide bar
5.2.2 Removing of toothrocker

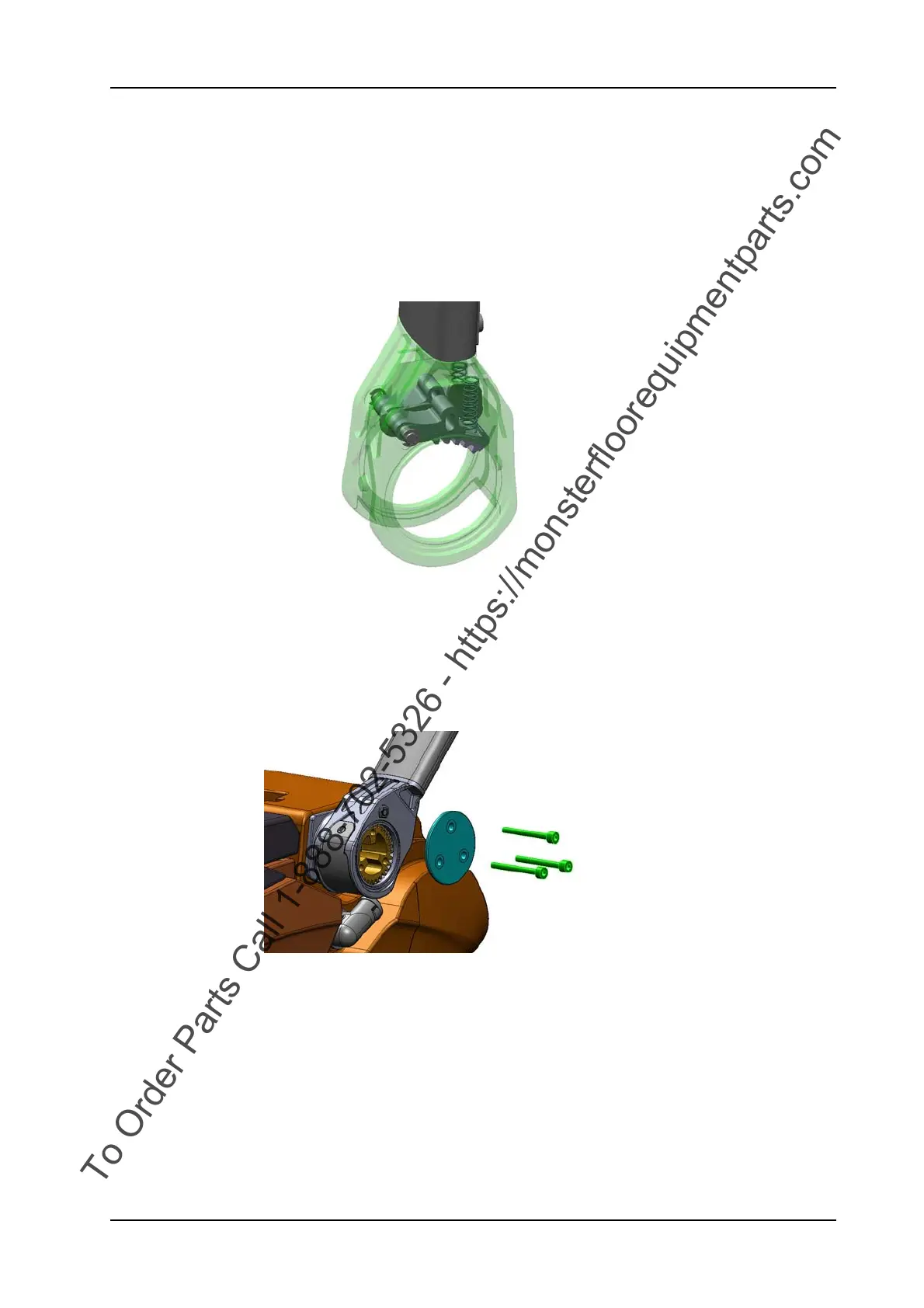

Picture 18: Toothrocker
Remove the cover (02/103) and release the tension of the
bowden cable according to chapter ADJUSTING OF BOWDEN
CABLE HANDLE.
Lift the bowden cable out of the articulation (02/113).
Remove the 3 screws (02/105) with a 6mm Allen key.
Pull off the sustaining disc (02/106).
Picture 19: Remove guide bar screws
Remove the articulation from the bracket (02/112).
Remove the cover (02/110) from the articulation.
Remove one of the retaining washers (02/119) from the axle
(02/118).
Remove the axle.
