GTS Technical Manual
26. March 2013 Edition: V2.00/2013 5-7
Copyright © 2013, Diversey Inc.
05.10.18 handle - wiping blade lever - 350B_V1.00.fm
5.1 Handle
5.1.6 Mounting of wiping blade lever

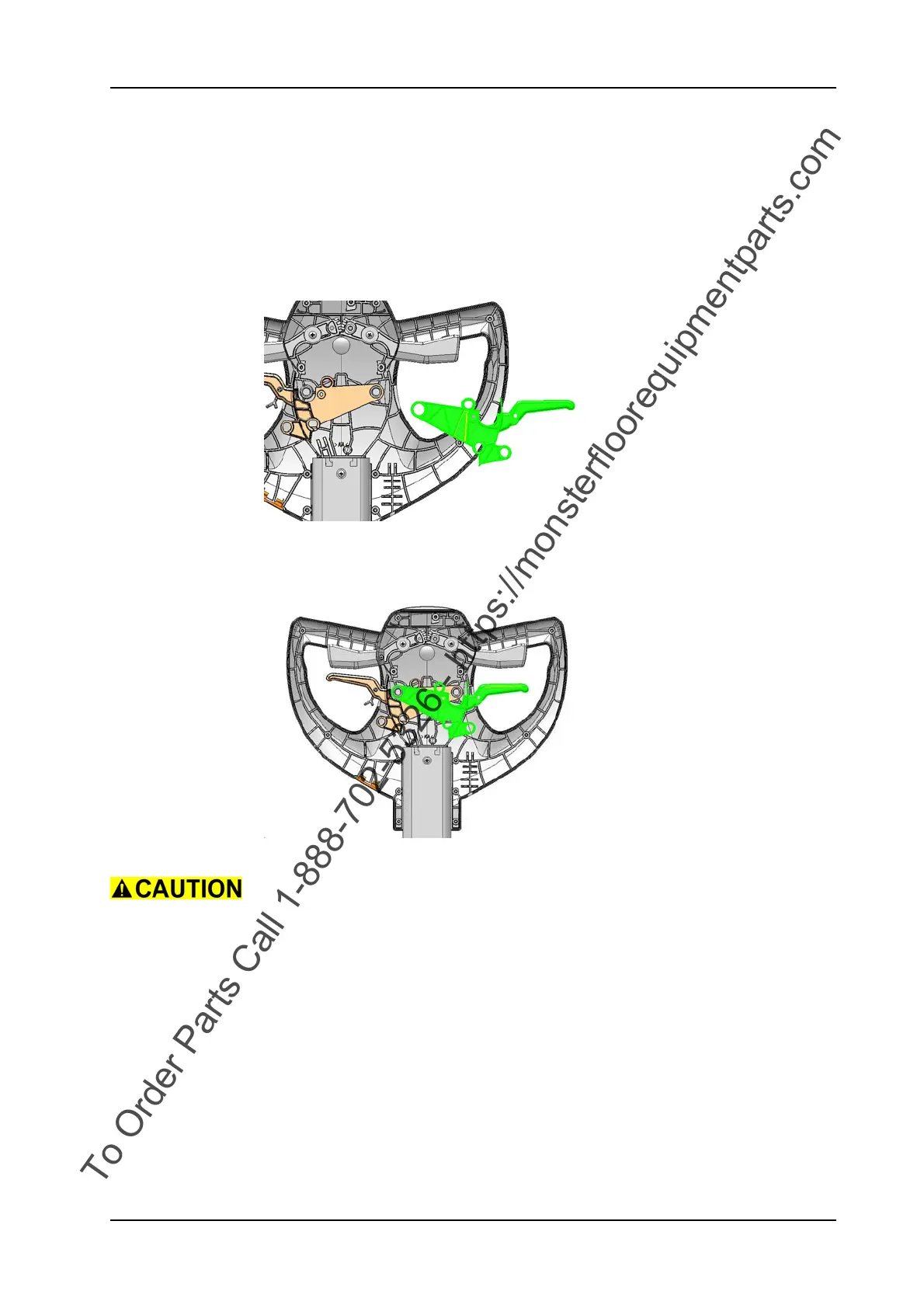

Picture 11: Wiping blade lever removed
• Mount the end bolt of the bowden cable for the wiping blade.
• Mount wiping blade lever onto handle.
Picture 12: Wiping blade lever
Ensure that the wiping blade lever has the bolt with magnet (01/118)
mounted.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
Adjustment
Make sure that the bowden cable is adjusted correctly. Please refer to
chapter ADJUSTING OF BOWDEN CABLE WIPING BLADE.
